Camera type : Single chip color CMOS (pixel shifting) & Cooling system : Peltier device Image sensor size : 1/1.2 inch 2.35 megapixels color CMOS Image sensor shutter type : Global shutter Camera mount : C-mount Effective image resolution : 5760 x 3600 (pixel shifting, 3-CMOS mode) 2880 x 1800 (pixel shifting, 3-CMOS mode) 1920 x 1200 (1 x 1, 3-CMOS mode) 1920 x 1080 (1 x 1) 1600 x 1200 (1 x 1) 960 x 600 (1 x 1) 960 x 600 (2 x 2) ROI
Gain : 0.5X/1X/2X/4X/8X/16X Metering modes : Full image, 30 %, 1 %, 0.1 % Still image transfer time : 5760 x 3600 (3-CMOS): approx.9 s Color space : sRGB, AdobeRGB Image file format : File formats supported by OLYMPUS Stream software Dimensions : Camera head :116 (φ) x 87.7 (H) mm approx.1.1 kg Controller : 100 (W) x 338 (H) x 381 (D) mm (without any protrusion) approx.6.7 kg
The DP22 is a 2.8 megapixel digital camera for microscopes that offers stunning color and crisp detail with a smooth 15 frames per second, perfect for users without access or the desire to use a PC. DP22 has the power to display images over high-definition at a smooth 25 frames per second. The stunning colors, crisp images and real-time display address the fundamental needs of industrial departments such as inspection and quality control. DP22 cameras can be used as a complete stand-alone model (no PC required). It is an ideal selection when precious bench space is limited. The camera is controlled from a dedicated control box providing smooth and intuitive operation via a touchscreen monitor or a mouse.
The DP27 is a 5 megapixel digital camera for microscopy with high-fidelity color reproduction and progressive scanning free from color shift, providing live images with superb quality, seamlessly integrated into the OLYMPUS Stream analysis. Equipped with an industry leading 5-megapixel CCD, the micro imaging digital camera, DP27 captures images at up to 2448 x 1920-pixel resolution－allowing large fields of view captured at low magnification providing vivid clarity with images remaining clear even when digitally enlarged. The DP27 is ideally suited to be used for visual inspection,with near real time imaging. Its color fidelity provides faithful color reproduction for a variety of samples in such diverse fields as materials science, semiconductor and electronics.

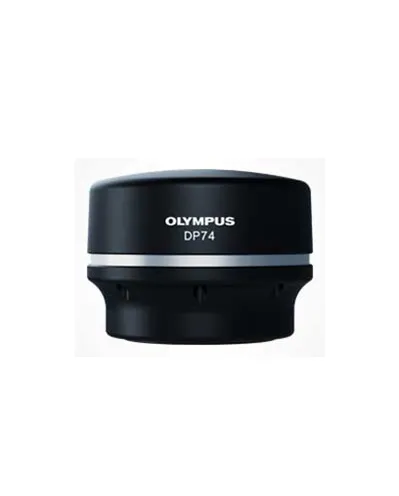

The DP74 color camera supports advanced functions to capture high-quality images of samples. The camera combines a wide field of view with a diagonal length of 21 mm with full HD image resolution at 60 frames per second (fps). The Global shutter of the DP74's CMOS expose the whole pixel at same time. Therefore, even in moving stage, there is no distortion like rolling shutter CMOS which expose and reads line by line. The result is that users can acquire images of sample quickly and easily. The DP74 camera is optimized for fluorescence imaging with a powerful noise reduction function and a high level of gain sensitivity. With the position navigator, you’ll always know your location in the sample, even without a motorized stage.
