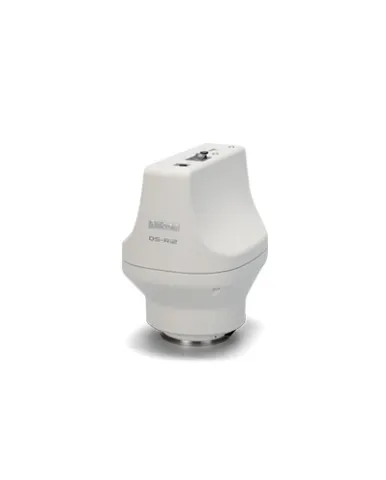

Nikon has optimized the digital SLR camera CMOS sensor and image processing technologies for microscope imaging to develop a high-definition color camera. With 16.25 million pixels, the DS-Ri2 is the ideal camera for brightfield or cross-over applications where high resolution, great color fidelity and large pixel count images are important to an end-user. The DS series enables one-shot instantaneous capture and fast storage of images with resolution as high as 4908 x 3264 pixels, without pixel shifting or pixel stepping. This pixel density is ideally suited for photomicrography of ultra-fine structures or patterns in biological or industrial samples, at low or high magnifications.
Image sensor : Nikon FX-format, Color CMOS senser / Size: 36.0×23.9mm, Effective 16.25 megapixels Recordable pixels : 4908×3264 pixel (full-pixel), 1636×1088 pixel (3×3 pixel averaging) ISO sensitivity (recommended exposure index) : Standard: equivalent to ISO 200 (Selectable from ISO200 to12800 equivalent) Operating environment : 0-30°C, 80% RH max, 30-40°C, 60% RH max. (without condensation) Live display mode : Full-pixel 4908×3264 pixel (max 6fps) / 3×3 pixel averaging 1636×1088 (max 45fps) Lens mount : F mount Exposure time : 100 μsec to 120 sec Image format : BMP, TIFF, JPEG, etc., selectable in NIS-Elements Interface : USB3.0 (computer control connection) ×1, External sync input/output ×1 Power supply : AC100-240V 50/60Hz Power consumption : 13W Dimensions : 105 (W) × 134 (D) × 153 (H) mm Weight : 1200g
The CMEX-WIFI 5 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
