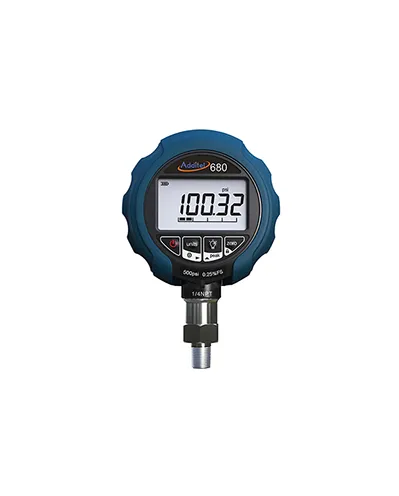

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the 680 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications. They are loaded with functionality and remarkably easy to use. To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly
Gauge pressure range : 0 to 300 psi (20 bar) Accuracy : 0.1% FS Media : Gas and liquid Engineering units : Pa, kPa, MPa, bar, mba, psi, kgf/cm2, mmH2O, mmHg, inH2O, inHg, ozf/in, %, °C, °F. extend units : inH2O(20°C), inH2O(60°F), mmH2O(20°C), mmH2O(15°C), ftH2O(60°F), or ftH2O(4°C) Overpressure alarm : Display will flash over 120%FS Fitting : 1/4NPT male, 1/4BSP male, M20×1.5 male (≤15,000 PSI) Max/Min data capture : Saves Max and Min data during pressure measurement Certificates : CE R&TTE, FCC ID, IC ID Protection level : IP67 Vibration : 5g(20-2000Hz) Shock resistance : 100g/11ms Dimensions : 100mm x 40mm, total height : 157mm Weight : 500g
The DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package. The DPI 104 matches advanced silicon sensor technology with several convenient design features, resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a stand alone process indicator or in a kit with the widely proven Druck hand pumps, the DPI 104 provides a reliable and economic solution for a wide range of pressure sensing applications
The DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package. The DPI 104 matches advanced silicon sensor technology with several convenient design features, resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a stand alone process indicator or in a kit with the widely proven Druck hand pumps, the DPI 104 provides a reliable and economic solution for a wide range of pressure sensing applications
The DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package. The DPI 104 matches advanced silicon sensor technology with several convenient design features, resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a standalone process indicator or in a kit with the widely proven Druck hand pumps, the DPI 104 provides a reliable and economic solution for a wide range of pressure sensing applications
