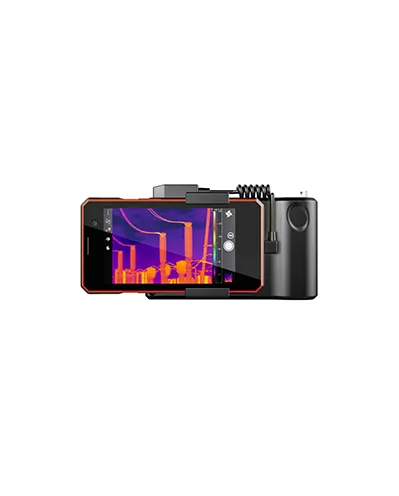

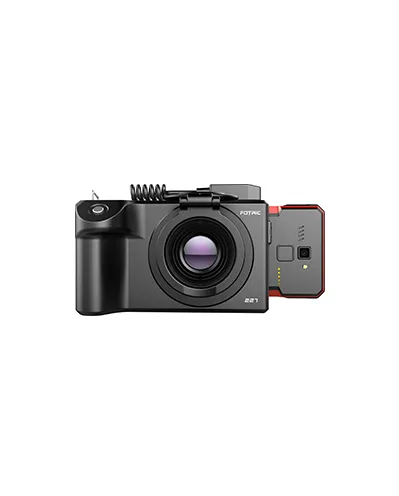

Fotric 227 is a high quality thermal imaging camera with a built-in S7 smartphone to provide easy operation, thermal analysis, and communication capabilities. Using a 512 x 384 pixel sensor, the 227 has a 23deg x 17.3deg field of view. The minimum focal length is 4” with a standard lens with manual focusing – more precise/selectable than autofocus, with a built-in 10x continuous digital zoom. 12 movable regions of interest can be defined, with emissivity adjustably set for each area. The Fotric 220 Series of thermal cameras combine infrared technology with smartphone capabilities. The easy to learn smartphone app controls all functions. These cameras can record up to 1000 frames of full radiometric video and capture temperature change processes in real time with a user-defined sampling rate of up to 5 frames/sec
IR Resolution : 512 × 384 pixels Field of View (FOV) : 23°× 17° Temperature Range : -20 C to 650 C Minimum Focus Length : 0.1m (Standard Lens) Spatial Resolution (IFOV) : 0.78mrad Thermal Sensitivity (NETD) : ≤0.05 C @ 30 C Measurement Accuracy : ±2 C or ±2% whichever is greater @ environment temperature 10 C to 35 C Focus : Manual Spectral Range : 8~14μm Detector Type : Focal Plane Array (FPA) uncooled microbolometer Zoom : 10X continuous digital zoom Palettes : 15 palette options (Gray White, Gray Red, Iron Red, Rainbow, etc.) Palette Switching : Tap palette icon Noise Calibration : Automatic noise calibration FFC / manual noise calibration FFC Emissivity Adjustment : 0.1 to 1.0 Regional Emissivity Adjustment : Support Automatic Capture of High and Low Temperature : Support Battery Operating Time : 10 hours Charging System : AC Power Adapter Charging Voltage : 12V DC Charger Operating Temperature : -20 C to +50 C Storage Temperature : -20 C to +50 C Humidity : <90%RH Enclosure Rating : IP40 FCC Certification : CFR 47 Part 15.107 and CFR 47 Part 15.109 Tripod Mounting : UNC1/4 -20 Image Format : Standard JPEG, including raw temperature data, radiometric Dimensions (LxHxW) : 118×145×93.5mm Weight : 560 g
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
