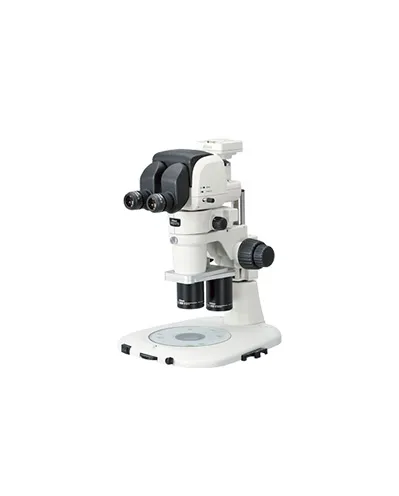

Nikon SMZ1720i is an advanced stereomicroscope featuring an expanded zoom range, remarkable image sharpness, and intelligent image acquisition features. To meet and exceed the needs to observe minute structures while covering a wide field of view in the biological fields where biological body screening, injection and observation are conducted every day, the SMZ1270i was developed to feature expanded zoom ratio, high operability, intelligent image acquisition features and excellent optical performance. With a best-in-class zoom ratio of 12.7x (0.63x-8x), the SMZ1270i covers an even greater magnification range than previous models. At the lowest magnification, the actual field of view will go up to 35mm*, allowing easy observation of an entire 35mm petri dish.
Optical System : Parallel-optics type (zooming type) Zoom Ratio : 12.7:1 Zoom Range : 0.63 – 8x (0.63/1/2/3/4/6/8x stops) Total Magnification : 3.15 – 480x (depending on eyepiece and objectives) (with coaxial episcopic illuminator: 15 – 540x) Tubes : Eyepiece inclination: 20° (P-B Binocular Tube) / 15° (P-TL100 Trinocular Tube) / 0°-30° (P-TERG100 Trinocular Tilting Tube, P-TERG50 Trinocular Tilting Tube) Eyepieces C-W10xB (F.N. 22), C-W15x (F.N. 16), C-W20x (F.N. 12.5), C-W30x (F.N. 7) Objectives : Plan Apo 0.5x/WF, Plan Apo 0.75x/WF, Plan Apo 1x/WF, ED Plan 1.5x/WF, ED Plan 2x/WF Working Distance : 70mm(with Plan Apo 1x/WF) Weight (approx.) : 11.9 kg (with P-TERG100 Trinocular Tilting Tube + P-DSL32 LED Diascopic Illumination Stand)
The excellent optics and mechanical components make the iScope® a state of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields The iScope® fluorescence microscope can be supplied with : 6-position rotating attachment with 100 W mercury vapor light source, 3-position slider attachment with 100 W mercury vapor light source, 1-position slider attachment with a 3 W NeoLED™ 465-475 nm blue light source and 1-position slider attachment with a 3 W NeoLED™ 520-530 nm green light source
The well-equipped microscopes of the bScope series are intensively used in universities, small and mid-sized laboratories and in veterinary applications The design of he bScope® is both ergonomic and evolutive. Height adjustable eyetubes and low stage controls to minimize fatigue during long working sessions and so providing more comfort for icroscopists. The robust, compact size of the bScope® and the Cable Storage System allows more working space, safer operation and enables easy storage
The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epiillumination sources for fluorescence applications can be used. iScope models with multiheads are also available for teaching purposes
