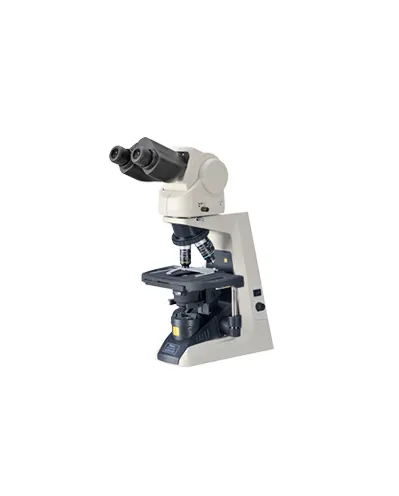

The Eclipse E200-LED is a built-to-last, top-quality biological microscope ideal for basic laboratory use or as a student microscope for educational purposes. With its newly developed LED Eco-Illumination system, the laboratory microscope produces brighter, sharper, crisper, and clearer images for a noticeably enhanced view. Best of all, the Eclipse E200-LED maintains the same operational ease and rigidity common to all Nikon microscopes and is compatible with many accessories for higher-grade Eclipse series microscopes.
Optical system : CFI60 Infinity Optical System, Parfocal distance: 60 mm Illumination : High luminescent white LED illuminator (Eco-illumination) & 6V20W halogen lamp, Compliant multi-voltage (100 V-240 V) Eyepieces (F.O.V.) : CFI E 10x (18 mm) & CFI E 15x (12 mm) Focusing : Coaxial coarse/fine focusing Right : fine Left : coarse/fine Focusing stroke : 26.5 mm Coarse : 37.7 mm/rotation Fine : 0.2 mm/rotation Coarse motion torque adjustable, Refocusing function Eyepiece Tube : E2-TB Binocular Tube E2-TF Trinocular Tube, Eyepiece/Port: 100/0, 0/100, 360º rotatable C-TE2 Ergonomic Binocular Tube, Inclination: 10–30 degrees, Extension: up to 40 mm Nosepiece : Quadruple nosepiece (within main body) Stages : Rectangular stage (within main body), with specimen holder, Cross travel: 78 (X) x 54 (Y) mm Observation methods : Brightfield, Epi-fluorescence, Darkfield, Phase contrast, Simple polarizing Power Consumption (max.) : Normal value: 3 W (LED model), 41 W (halogen model) Weight (approx.) : 7.3 kg (Binocular standard set)
The excellent optics and mechanical components make the iScope® a state of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields The iScope® fluorescence microscope can be supplied with : 6-position rotating attachment with 100 W mercury vapor light source, 3-position slider attachment with 100 W mercury vapor light source, 1-position slider attachment with a 3 W NeoLED™ 465-475 nm blue light source and 1-position slider attachment with a 3 W NeoLED™ 520-530 nm green light source
The well-equipped microscopes of the bScope series are intensively used in universities, small and mid-sized laboratories and in veterinary applications The design of he bScope® is both ergonomic and evolutive. Height adjustable eyetubes and low stage controls to minimize fatigue during long working sessions and so providing more comfort for icroscopists. The robust, compact size of the bScope® and the Cable Storage System allows more working space, safer operation and enables easy storage
The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epiillumination sources for fluorescence applications can be used. iScope models with multiheads are also available for teaching purposes
