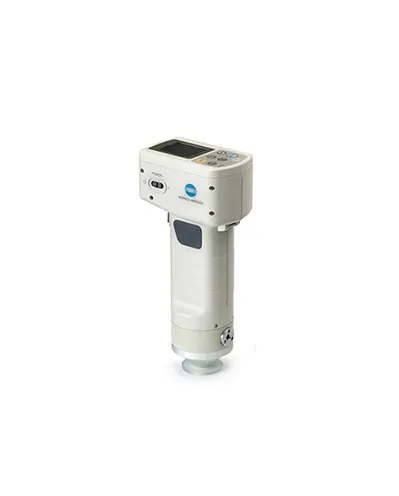

The CR-400 Chroma Meter is a handheld, portable measurement instrument designed to evaluate the color of objects, particularly with smoother surface conditions or minimal color variation. Through standard or customized evaluation formulas, this high accuracy, reliable colorimeter helps users control the color quality, consistency, and appearance of their samples in a more efficient, streamlined process internally and throughout the supply chain. It accurately identifies color characteristics in objects, determines color differences between objects, and provides pass/fail assessments to immediately determine if the sample meets the defined standard. This makes the CR-400 ideal for color inspections of food, building material, plastic, and dermatological applications within quality control, quality assurance, and R&D fields.
Illuminating/viewing system : Diffuse illumination/0<° viewing angle; specular component included/Conforms to JIS Z 8722 condition c standard) Detector : Silicon photocells (6) Display range : Y: 0.01% to 160.00% (reflectance) Light source : Pulsed xenon lamp Measurement time : 1 sec. Minimum measurement interval : 3 sec. Battery performance : Approx. 800 measurements (when using batteries under Konica Minolta's testing conditions) Measurement/illumination area : ⌀ 8mm/ ⌀11mm Repeatability : Within ΔE*ab 0.07 standard deviation (when the white calibration plate is measured 30 times at intervals of 10 seconds) Inter-instrument agreement : ΔE*ab: Within 0.6 - Average of 12 BCRA Series II colors Observer : 2° Closely matches CIE 1931 Standard Observer ( x2λ, yλ, zλ) Illuminant *1 : C, D65 Display *1 : Chroma values, color difference values, PASS/WARN/FAIL display Tolerance judgement *1 : Color difference tolerance (box tolerance and elliptical tolerance) Color space/ colorimetric data : XYZ, Y x y, L*a*b*, Hunter Lab, L*C*h, Munsell (only illuminant C), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI-Tw (only illuminant D65), WI ASTM E313 (only illuminant C), YI ASTM D1925 (only illuminant C), YI ASTM E313 (only illuminant C), User index (up to six can be registered from computer) Languages *1 : Operating keys: English, LCD: English (default), (LCD: German, French, Italian, Spanish, Japanese) Storable data sets : 1000 (measureing head and data processor save different data) Color difference target colors : 100 Calibration channels *1 : 20 channels (ch00: white calibration, ch01 to ch19 : user calibration) Display : Dot-matrix LCD with back light (15 chars x 9 lines + 1 line for icon display) Interface : RS0232C compliant (for data processor/PC) *Baud rate: 4800, 9600, 19200 (bps) set at 9600 bps when shipped from factory Power source : 4 AA size alkaline or Ni-MH batteries, AC adapter AC120V 50-60Hz (for N.America and Japan), AC230V 50-60Hz (for worldwide except N.America) Size : 410: 102 (W) x 217 (H) x 63 (D) mm Weight : 410: Approx 550g (including 4 AAA size batteries and not including RS-232C cable)
ColorReader CR4 (industrial basic version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR4 (industrial basic version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
ColorReader CR5 (Industrial Pro Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR5 (Industrial Pro Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
ColorReader CR6 (Industrial Enhanced Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR6 (Industrial Enhanced Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
