Pressure Calibrator

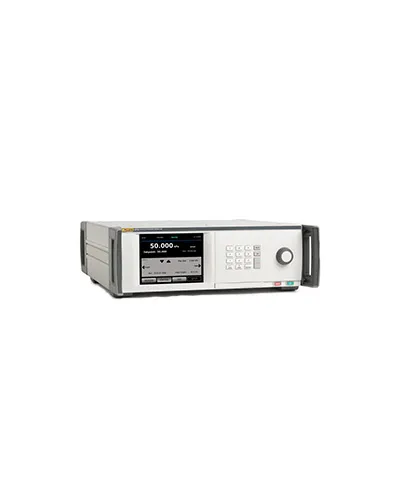

Modular Pressure Controller - Fluke 8270A

Range pressures : from vacuum to 44 MPa (6400 psi). It can be configured with ranges as low as 100 kPa (15 psi)
Power requirements : 100 V ac to 240 V ac, 47 Hz to 63 Hz
Fuse : T3.15 A 250 V ac
Max power consumption : 100 W
Ingress protection : IEC 60529:IP20
Pressure limits :
Maximum : 48 MPa (7 000 psi) gauge / 110 MPa (16 000 psi) gauge
Minimum : 2 MPa (300 psi) gauge for 8270A and 8370A
Reference port : 150 kPa (22 psi) absolute
Safety : IEC 61010-1, Installation Category II, Pollution degree 2
Dimensions : 147 mm (5.78 in) x 452 mm (17.79 in) x 488 mm (19.2 in)
Weight (Chassis only) : 13 kg (28.5 lbs) / 15 kg (35.25 lbs)
