Pressure Calibrator

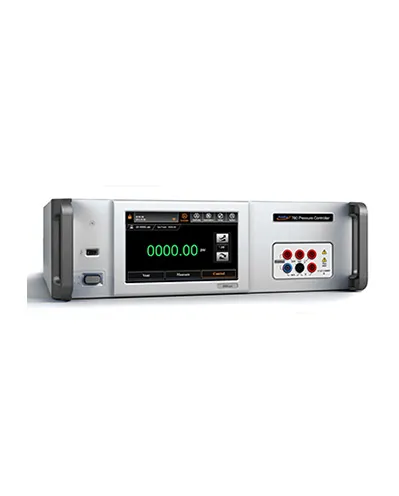

Pressure Controller – Additel ADT780-1K

Pressure range : -14.5 to 1,000 psi (-0.95 to 70 bar)
Control stability : 0.003% FS (stability based on % FS of control sensor range)
Media : Clean gas
Over-range indication : 103% to 120% (based on sensor)
Resolution : 4, 5, 6, or 7 digits (user selectable)
Pressure type : Gauge, Absolute
Warm up time : 15 minutes
Measurement units : Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, kg/m2, kg/cm2, mtorr, torr, atm, lb/ft2, tsi, user selectable
Minimum control pressure : 0.0001 psi
Power : 100 to 240V, 50/60 Hz
Pressure ports : G1/8 F
Storage temperature : -20°C to 70°C
Operating environment : 0-90% RH non-condensing
Vibration : 1G 10Hz~500Hz
Communications : RS232,USB,LAN,WIFI
Stability indicator : User selectable
Operating modes : Control, measure, and vent
Language : English, Chinese (simplified), German, Spanish, French, Italian, Portuguese, Russian, Japanese
Display : 7 inch (17.8 cm) color, touch screen display
Weight : 33 lbs (15 kg)
