Rotary Evaporator

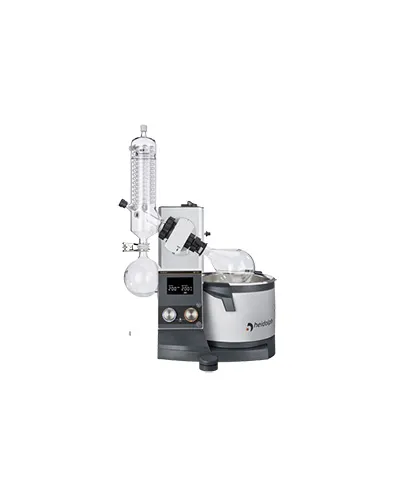

Rotary Evaporators – Heidolph Hei-VAP Ultimate Control HL

Lift : hand lift
Height adjustment speed : manual
Height adjustment : 155 mm
Rotation speed : 10 – 280 rpm
Rotation speed setting : 7" LCD display
Drive : brushless DC motor with electronic speed control
Heating capacity : 1,300 W
Temp. range heating bath : 20 – 210 °C
Temperature accuracy bath : ±1 °C
Overheat protection bath : cut-off at 5 °C over set temperature via separate Pt 1000
Secondary overtemp. cut-off : 250 °C
Bath temperature setting : 7" LCD display
Heating bath temperature control : electronic / digital
Material heating bath : stainless steel AISI 316 L
Diameter heating bath : inner 253 mm, outer 291 mm
Volume heating bath : 4.5 l
Max. size evaporating flask : 5 l
Display vapor temperature required accessories : yes vapor temperature sensor
Timer : yes
Programmable ramps : yes
Integrated vacuum controller : yes
Integrated Hei-CHILL controller : yes
Vacuum program DAA mode requires AUTOaccurate-sensor : yes
Supply power : 1,400 W
Dimensions with glassware set G3 max. w / d / h : 739 × 532 × 887 mm
Dimensions with glassware set G3 XL max. w / d / h : 739 × 532 × 920 mm
Condensing surface : 1,400 cm2
Condensing surface XL condenser : 2,200 cm2
Weight w/o glassware assembly : 14.7kg
