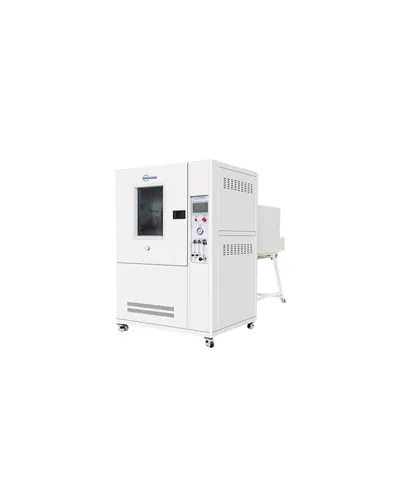

The Rain Test Chamber IPX 123456 is suitable for testing the IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 waterproof levels of the product. The shell is made of domestic steel plate, and the surface is sprayed with paint, which is beautiful and durable. Suitable for outdoor lamps, household appliances, auto parts and other electronic and electrical products.
Spesifikasi: Model: SR/IPX56/1000 Testing room size (W*H*D mm): 1000*1080*1050 External size (W*H*D mm): 3950*1800*1200(2.5m pipeline is detachable ) IPX5 Nozzle diameter : φ6.3mm IPX5 water flow: 12.5L/min IPX6 Nozzle diameter: φ12.5mm IPX6 water flow: 100L/min Flushing distance : 2500mm Swing amplitude : ±15°(theoretical value) Safety protection: Leakage, short circuit, motor overheating Power supply: AC380V TN-S
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
