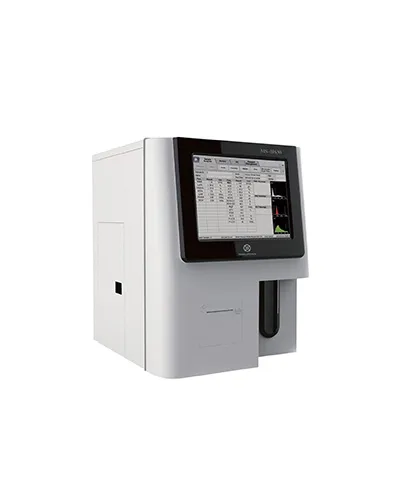

MSH630 3-diff Hematology Analyzer from the Medical System is a premium grade hematology tool that is proven to be tough and reliable in everyday applications. Received recognition from TUV Germany and ISO certified makes MSH630 a trusted product on the market. User-friendly and integrated with thermal printers are also equipped with comprehensive data management that is compatible with USB printers
Throughput : 60 Samples/ hour Analysis Channel : Dual-Channel for counting Innovative Technology : Automatic floating discriminators, Plus baseline tracking technology, Waveform discrimination technology, Digital Sheath-Flow technology Principle : Impedance method (WBC/RBC/PLT) and cyanide free colorimetric method (HGB) 21 Reportable Parameters CBC : Whole Blood Mode: WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 Histograms: WBC (3-Part Differential), RBC, PLT Sensitive flagging (WBC, RBC & PLT) for Pathological sample and counting failure flags Sample volume : CBC 9 μL Counting modes : Venous whole blood, capillary whole blood, and pre-diluted blood Reference value setting : Pediatrics, Male/Female adult, general and user-defined Flagging system : Reliable alarm system with customized function Linearity : WBC : 0~300 x 109/L RBC : 0~8.5 x 1012/L HGB : 0~250g/L HCT : 0~67% PLT : 0~3000 x 109/L Data storage capacity : up to 50,000 results including numeric and graphical data Communication : LAN port support HL7 protocol Interface : 4 USB porlt, 1 LAN connection support Bi-directional LIS Printout : extrernal laser Printer/inkjek printer, various printoul formals and customized formats Operating Environment : 10 C - 30C , 20%-85%, and air pressure 70kpa-106kpa Power requirement : AC100v-240V (50/60Hz) <250VA Display : 10.4” Intuitive color touch screen Multi- Language : Chinese, English avallable Dimension : 410mm(L) x 353mm(W) x 471mm(H) Weight : 25 Kg
