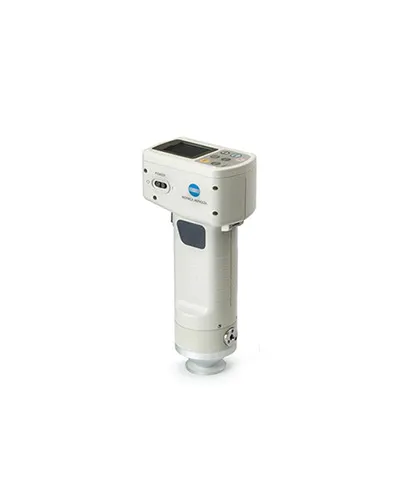

The CR-410 Chroma Meter is a handheld, portable measurement instrument designed to evaluate the color of objects, particularly with texture, uneven surface conditions, or a lot of color variation. Through standard or customized evaluation formulas, this high accuracy, reliable colorimeter helps users control the color quality, consistency, and appearance of their samples in a more efficient, streamlined process internally and throughout the supply chain. It accurately identifies color characteristics in objects, determines color differences between objects, and provides pass/fail assessments to immediately determine if the sample meets the defined standard. This makes the CR-410 ideal for color inspections of food, building material, and textile applications within quality control, quality assurance, and R&D fields.
Illuminating/viewing system : Wide-area illumination/0° viewing angle; specular component included) Detector : Silicon photocells (6) Display range : Y: 0.01% to 160.00% (reflectance) Light source : Pulsed xenon lamp Measurement time : 1 sec. Minimum measurement interval : 3 sec. Battery performance : Approx. 800 measurements (when using batteries under Konica Minolta's testing conditions) Measurement/illumination area : ⌀ 50mm/ ⌀ 53mm Repeatability : Within ΔE*ab 0.07 standard deviation (when the white calibration plate is measured 30 times at intervals of 10 seconds) Inter-instrument agreement : ΔE*ab: Within 0.8, Average of 12 BCRA Series II colors Observer : 2° Closely matches CIE 1931 Standard Observer ( x2λ, yλ, zλ) Illuminant *1 : C, D65 Display *1 : Chroma values, color difference values, PASS/WARN/FAIL display Tolerance judgement *1 : Color difference tolerance (box tolerance and elliptical tolerance) Color space/ colorimetric data : XYZ, Y x y, L*a*b*, Hunter Lab, L*C*h, Munsell (only illuminant C), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI-Tw (only illuminant D65), WI ASTM E313 (only illuminant C), YI ASTM D1925 (only illuminant C), YI ASTM E313 (only illuminant C), User index (up to six can be registered from computer) Languages *1 : Operating keys: English LCD : English (default), (LCD: German, French, Italian, Spanish, Japanese) Storable data sets : 1000 (measuring head and data processor save different data) Color difference target colors : 100 Calibration channels *1 : 20 channels (ch00: white calibration, ch01 to ch19 : user calibration) Display : Dot-matrix LCD with back light (15 chars x 9 lines + 1 line for icon display) Interface : RS-232C compliant (for data processor/PC), *Baud rate: 4800, 9600, 19200 (bps) set at 9600 bps when shipped from factory Power source : 4 AA size alkaline or Ni-MH batteries, AC adapter : AC120V 50-60Hz (for N.America and Japan), AC230V 50-60Hz (for worldwide except N.America) Size : 410: 102 (W) x 244 (H) x 63 (D) mm Weight : 410: Approx 570g (including 4 AAA size batteries and not including RS-232C cable)
Ts7x series is a grating spectrophotometer that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range. Under the condition of d/8 geometric optical illumination recommended by CIE, TS7600 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7600, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system. Spectrophotometer TS7600 is also widely used in the color quality control of various products. TS7600 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.
Ts7x series is a grating spectrophotometer that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range. Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system. Spectrophotometer TS7700 is also widely used in the color quality control of various products. TS7700 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.
TS7X series grating spectrophotometer is 3NH company spent 3 years, carefully designed, fully with independent intellectual property rights grating spectrophotometer. The instrument uses 1000 lines of precision shining grating as the optical splitter, built-in silicon photodiode array (double row 40 groups) sensor, imported white board, repeatability delta E* AB easily controlled within 0.03, the use of long life full spectrum LED as the light source, optical resolution in the visible range is less than 10nm. Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system. TS7708 spectrometer is equipped with φ 8mm, φ 4mm, 1x3mm three measuring apertures, more adaptability, accurate measurement of color, stable performance, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, in scientific research institutions, laboratory fields are widely used.
