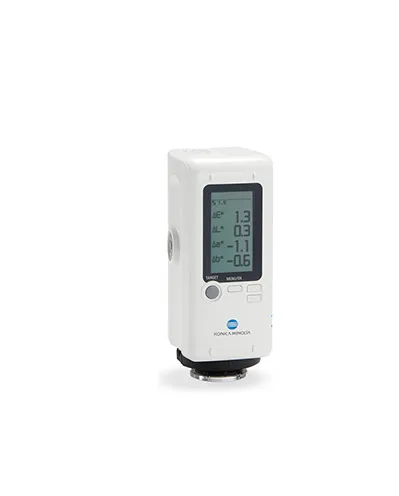

This instrument can be utilized in order to control color from raw materials through the process of manufacturing. The CR-20 fits comfortably in the palm of your hand. It is both battery-operated and light-weight, so it is extremely portable. This unit can also be connected to an AC adapter for external power. This device is affordable and easy-to-use.The functionality of this instrument is user-friendly and does not perform any unneeded processes. This makes things simple. There are 3 easy steps to operate the CR-20, switch on power, perform white calibration, and measure the sample. All color measurements are taken using conditions of the standard illuminant D65 and 10 degrees observer while offering a Xenon lamp light source for longer life and more stable readings.
Illuminating/viewing geometry : 8° : de (8°illumination angle/diffuse viewing: specular component excluded) (conforms to DIN 5033 Teil 7, JIS Z 8722 condition d, ISO 7724/1, CIE No. 15, ASTM E 1164) Detector : Silicon photocells (6 pcs.) Light source : Pulsed xenon lamps Measurement time : Approx. 1 sec Battery performance : Approx. 2,000 measurement at 10-sec. intervals when using alkaline-manganese batteries Measurement area : Approx. : ø8 mm Repeatability : Standard deviation within ΔE*ab 0.1 (when a white calibration plate is measured 30 times at 10-second intervals) Display languages : English, Japanese Interface : USB2.0 Observer : 10° Standard Observer Illuminant : D65 Display data : Colorimetric data, average (up to 999 times) Color spaces : L*a*b*, L*C*h, Yxy, XYZ, Munsell (D65) Colorimetric Indexes : WI (CIE/ASTM E 313-96), Tint (CIE/ASTM E 313-96), YI (ASTM E 313-96) Data memory : Sample data (up to 1,000) Operation temperature/ humidity range : 0 to 40°C, relative humidity 85% or less (at 35°C) with no condensation Storage temperature/ humidity range : -20 to 40°C, relative humidity 85% or less (at 35°C) with no condensation Power : 4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable batteries, USB bus power or special AC Adapter Size (W x H x D) : 66 x 159.5 x 85 mm Weight : 420 g (without batteries)
The CM-600D Spectrophotometer is a handheld, portable measurement instrument designed to evaluate the color and appearance of various samples medium to large in size, including objects with flat, shaped, or curved surfaces. This high precision, reliable spectrophotometer allows users to evaluate, reproduce, and control the color of pigments and dyes in a more effective, streamlined process. Its advanced capabilities help establish and meet color quality standards more efficiently, maintain consistency in each batch of material, and communicate color seamlessly internally and throughout the supply chain. This makes the CM-600D ideal for color analysis, formulation, quality control inspections, and process control procedures within research and manufacturing environments
The CM-700D Spectrophotometer is a handheld, portable measurement instrument designed to evaluate the color and appearance of various samples medium to large in size, including objects with flat, shaped, or curved surfaces. This high precision, reliable spectrophotometer allows users to evaluate, reproduce, and control the color of pigments and dyes in a more effective, streamlined process. Its advanced capabilities help establish and meet color quality standards more efficiently, maintain consistency in each batch of material, and communicate color seamlessly internally and throughout the supply chain. This makes the CM-700D ideal for color analysis, formulation, quality control inspections, and process control procedures within research and manufacturing environments
The UG-60A, is an affordable Gloss Meter with a 60° measuring angle, suitable for samples with medium gloss, ideal for paints and plastics. Ergonomic design, color display, scroll wheel operation and easy to navigate menu make gloss measurement easier than ever before. Statistics, Difference, Pass/Fail - ready for any task. The intelligent auto diagnosis guarantees long-term stable results and tells you when to calibrate
