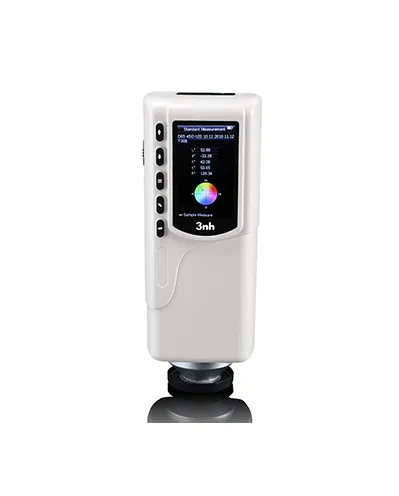

3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.
Illuminating/Viewing Geometry : 45°/0° Measuring Aperture : Φ20mm Special Function : Especially suitable for testing surface stripe and wet products Locating : Illumination Locating/Cross Locating Detector : Silicon photoelectric diode Locating : Illuminating Locating/Cross Locating Color Space : CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ Color Difference Formula : △E*ab; △L*a*b*; △E*C*h* Light Source : D65 Light Source Device : LED blue light excitation Errors Between Each Equipment : ≤0.50ΔE*ab Storage : 100pcs standards 20000pcs samples Repeatability : Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate Power source : Rechargeable lithium-ion battery 3.7V@3200mAh Lamp Life : 5 years, more than 1.6 million measurements Charging Time : First charging time is 8 hours--100% electricity PC Software : CQCS3 Software Printer (optional) : Miniature thermal printer Weight : 500g Dimension : 205×67×80 mm
ColorReader CR4 (industrial basic version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR4 (industrial basic version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
ColorReader CR5 (Industrial Pro Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR5 (Industrial Pro Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
ColorReader CR6 (Industrial Enhanced Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR6 (Industrial Enhanced Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
