Pressure range : 0 – 15.000 psi
Accuracy : 0.05 % FS including non-linearity, hysteresis, repeatability and temperature effects from 14°F to 122°F (-10°C to 50°C)
Resolution : Maximum five digits
Burst pressure : Burst pressure is 2x working pressure (exception, 20,000 psi (1400 bar); burst pressure 29,000 psi (2000 bar)
Selectable pressure units : kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg
Display : Pressure reading : 5 digits with 0.5 in (12.7 mm character height Full scale indicator : 2.5 digits with 0.25 in (6.35 mm) character heigh

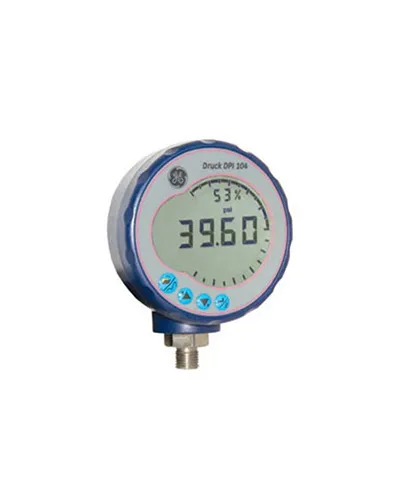

Pressure bar graph : In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular
twenty segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100% full scale output. The bar graph increments represent 5% of the user selectable range
Display update : Two times per second
Minimum/maximum values : The minimum and maximum pressure values can be displayed on the DPI 104. This function can be enabled/disabled, and reset by the use Pressure port : 1/4 NPT or BSP male for units to 10,000 psi (700 bar) / 9/16 x 18 UNF male cone connection 15,000
psi (1000 bar) and 20,000 psi (1400 bar) units
Dimensions : Diameter: 3.74 in (95 mm) excluding pressure fittings / Depth: 2.17 in (55 mm)
Weight : 13 oz (350 g) approximate
