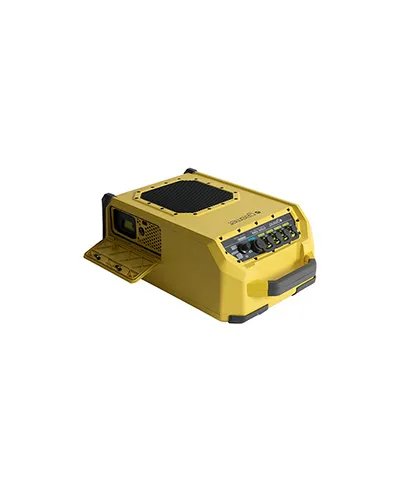

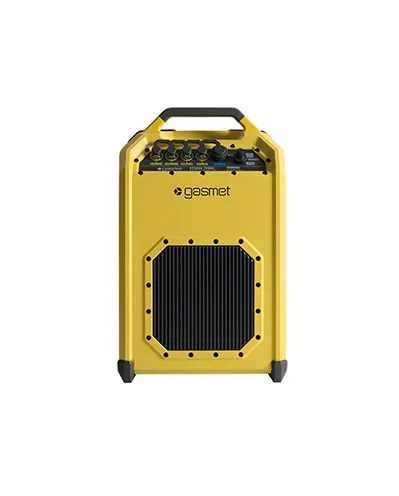

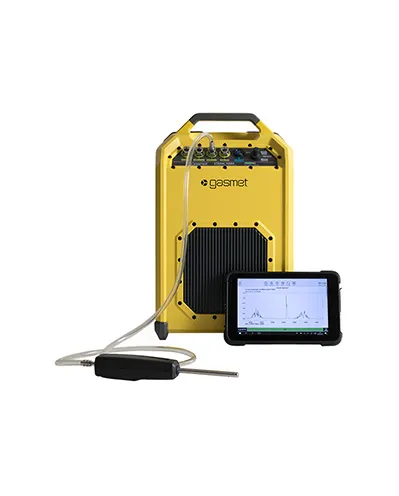

Gasmet GT5000 Terra is a portable ambient temperature FTIR gas analyzer. It is designed for high-quality multigas measurements in the field. Built-in pump, battery operation, wireless connections and splash-proof cover allow ease of use in demanding conditions. The GT5000 Terra is a next-generation gas analyzer combining high technology with ease of use and true robustness. This analyzer is designed specifically for demanding and active field and on-the-go use. It is lightweight and compact, meaning that it can be easily carried to the field as a backpack with minimum effort. What is more, the analyzer allows simultaneous gas measurements while on the move.
Measuring principle : Fourier transform infrared, FTIR Multigas capability : Simultaneous analysis of up to 50 gas compounds Response Time : Typically < 120 s, depending on the measured components and measuring time Battery : Li-ion battery, approximately 3-hour operation time Power supply : 115 / 230 VAC Analysis Software : Calcmet. Required operating system Windows 7 or 10 Data Connection : USB, Ethernet, Bluetooth, WiFi Access Point and WiFi Station. Remote operable. Sample pump flow : 2 liters / minute Sample gas filtration : Recommended filtration: Gasmet sampling probe with 2 µm PTFE filter Sample inlet/outlet fittings : 6 mm quick-connect Product compliance : CE, UKCA Spectrometer : Resolution : 8 cm-1 Scan frequency : 10 scans / s Detector : Peltier cooled MCT Beamsplitter : ZnSe Wave number range : 900 - 4 200 cm-1 Sample cell : Structure : Multipass, fixed path length 5.0 m Mirrors : Fixed, gold coated Volume : 0.5 liters Dimensions : 450 x 287 x 166 mm (17,7 x 11,3 x 6,5 inches) (H x W x D) Weight : 9.4 kg (with battery), 8.0 kg (without battery)
Modern and powerful flue gas analyser for residential and commercial heating installations. DELTAsmart enables you to measure flue gas, pressure and temperature in one device. It is ideally suited for all control and adjustment work at gas, oil-fired, condensing and wood-burning boilers.
The slim multi talent handheld flue gas analyser using up to 7 sensors. Suitable for emission monitoring of combustions and industrial processes Intuitive software menu and bright colour display will guide you through all measuring programs. Store up to 16.000 data sets directly in the analyser’s internal data storage or on micro-SD card, or even use Bluetooth™ for wireless data transfer to notebook or MRU4u data app for smartphone or tablet. Printing via infrared, high speed thermal printer is at the tip of your fingers.
Multigas analyser, designed for biogas measurements as well as engine fluegas. With OPTIMA Biogas we offer you additionally measurement of biogas pressure and temperature, gas flow velocity, with normalized flow rate calculation. OPTIMA Biogas may measure, given an appropriate sensor configuration, CHP engine exhaust gases as well.
