Gas Detector and Gas Analyzer FTIR Gas Analyzer - Gasmet GT6000 Mobilis 3 ftir_gas_analyzer__gasmet_gt6000_mobilis2

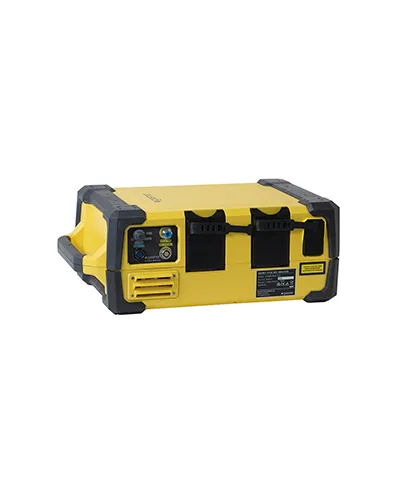

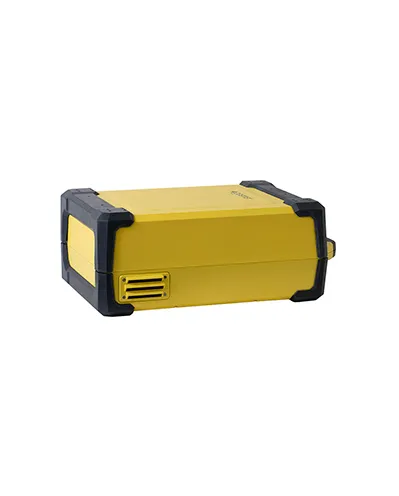

FTIR Gas Analyzer - Gasmet GT6000 Mobilis

Category :
Gas Detector and Gas Analyzer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

Gasmet GT6000 Mobilis is a portable, mains powered high performance multicomponent gas analyzer for demanding applications. GT6000 Mobilis incorporates temperature stabilized sample cell at 50 °C or 180 °C, which allows measuring from hot and wet gas streams. The GT6000 Mobilis is a portable FTIR analyzer for monitoring gas concentrations in hot, wet, and corrosive gas streams. Together with Portable Sampling System (PSS Plus or PSS Base), it transforms into complete portable FTIR emissions monitoring system. FTIR technology ensures that results will be available immediately on-site, and further analysis provides hard data for your specific needs. The system is typically set up to measure H2O, CO2, CO, NO, NO2, N2O, SO2, NH3, CH4, HCl, HF and different VOCs and can measure up to 50 gases simultaneously.

Measuring principle : Fourier transform infrared, FTIR
Multigas capability : Simultaneous analysis of up to 50 gas compounds
Response Time : Typically < 120 s
Power supply : 115 / 230 VAC 50 / 60Hz
Power consumption : Max. 300 W
Analysis Software : Calcmet (Required operating system Windows 10)
Data Connection : USB (HID), Ethernet, Bluetooth, WiFi Access Point and WiFi Station

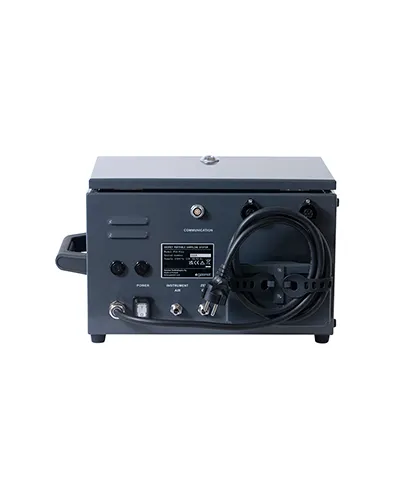

Sample pump : Recommended: Gasmet PSS Base or PSS Plus.
Sample gas filtration : Minimum 2 µm particulate filtration. Recommended: Gasmet PSS Base or PSS Plus with standard filter.
Gas fittings :
Sample in : 6 mm Swagelok
Sample out : 8 mm Swagelok
Interferometer purge : 6 mm quick connec
CE label : According to EMI guideline 2014/30/EU and low-voltage directive 2014/35/EU
Spectrometer :
Resolution : 4/8 cm-1
Detector : Thermoelectrically cooled MCT
Beamsplitter : Antireflection coated ZnSe
Wave number range : 900 - 4 400 cm-1
Sample cell :
Structure : Multi-pass, fixed path length 5.0 m
Material : 100 % purity gold coated aluminum
Mirrors : 100% purity gold coated metal mirrors with protection layers
Volume : 0.5 liters
Temperature : 50 °C or 180 °C
Material : ABS PC
IP class : IP42
Dimensions : 474 x 315 x 183 mm
Weight : 11.2 kg
