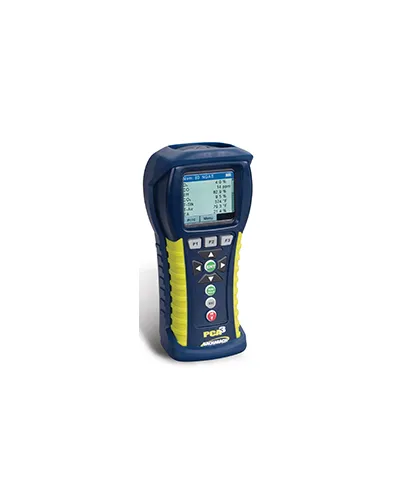

The PCA®3 is the perfect tool for busy technicians and boiler contractors who need to ensure safe operating conditions, determine combustion efficiency and perform emissions testing. Up to 4 sensors can be installed, measuring all gases simultaneously, including NOx (calculated from NO or measured from NO + NO2). Sensors can be added in the field without down time or replaced using B-Smart® pre-calibrated sensors. The PCA®3 calculates values like efficiency, CO2 and CO air-free to help monitor combustion processes effectively and accurately.
Measurements : O2 : 0 to 20.9% CO (low-range, H2-compensated) : 0 to 4000 ppm CO (high-range, optional) : 4001 to 20,000 ppm NO (optional) : 0 to 3000 ppm NO2 (optional) : 0 to 500 ppm SO2 (optional) : 0 to 5000 ppm Stack temperature : -4 to 2192 °F (-20 to 1200 °C) Primary/ambient air temperature : -4 to 999 °F (-20 to 537 °C) Draft/differential pressure : ± 72 inH2O (± 179 mbar) Power : 4x AA batteries or optional wall adapter Run Time : 10 hours minimum (alkaline batteries) Size (H x W x D) : 9.0 x 3.0 x 2.5 in. (22.9 x 7.6 x 6.3 cm) Weight : 2.4 lb. (1.1 kg) including batteries and probe
Modern and powerful flue gas analyser for residential and commercial heating installations. DELTAsmart enables you to measure flue gas, pressure and temperature in one device. It is ideally suited for all control and adjustment work at gas, oil-fired, condensing and wood-burning boilers.
The slim multi talent handheld flue gas analyser using up to 7 sensors. Suitable for emission monitoring of combustions and industrial processes Intuitive software menu and bright colour display will guide you through all measuring programs. Store up to 16.000 data sets directly in the analyser’s internal data storage or on micro-SD card, or even use Bluetooth™ for wireless data transfer to notebook or MRU4u data app for smartphone or tablet. Printing via infrared, high speed thermal printer is at the tip of your fingers.
Multigas analyser, designed for biogas measurements as well as engine fluegas. With OPTIMA Biogas we offer you additionally measurement of biogas pressure and temperature, gas flow velocity, with normalized flow rate calculation. OPTIMA Biogas may measure, given an appropriate sensor configuration, CHP engine exhaust gases as well.
