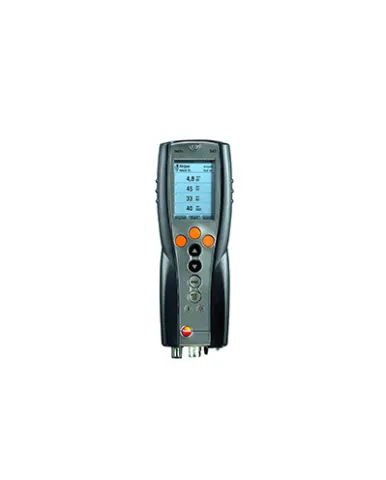

The unique measuring range extension allows unrestricted measurements to be carried out even at high gas concentrations. The testo 340 is equipped with an O2 sensor as standard. Three further gas sensors can be configured individually, in order to be able to adapt the instrument optimally to the respective measurement task. The instrument can also be operated remotely from your Andrroid Smartphone or tablet using the free App. The compact design and the reliable technology make it the ideal measuring instrument for commissioning, service and maintenance work and in test measurements on industrial burners, stationary industrial engines, gas turbines and thermal processes.
O2 measurement : 0 to 21 Vol. % CO measurement (H2 compensated) : 0 to 10.000 ppm CO low measurement (H2 compensated) : 0 to 500 ppm NO measurement : 0 to 4.000 ppm NO low measurement : 0 to 300 ppm NO2 measurement* : 0 to 500 ppm SO2 measurement* : 0 to 5.000 ppm Draught measurement : -40 to +40 hPa Differential pressure measurement : -200 to 200 hPa Absolute pressure measurement : 600 to +1.150 hPa Derived parameters : Efficiency : 0 to 120 % Flue gas loss : 0 to 99.9 % Exhaust gas dewpoint : 0 to 99.9 °C CO2 measurement (Calculated from O2) : 0 to CO2 max. Storage temperature : -20 to +50 °C Operating temperature : -5 to +50 °C Power supply : Battery block 3.7 V / 2.4 Ah & Mains unit 6.3 V / 2 A Weight : 960 g Housing material : TPE PC Protection class : IP40 Dimensions : 283 x 103 x 65 mm
Modern and powerful flue gas analyser for residential and commercial heating installations. DELTAsmart enables you to measure flue gas, pressure and temperature in one device. It is ideally suited for all control and adjustment work at gas, oil-fired, condensing and wood-burning boilers.
The slim multi talent handheld flue gas analyser using up to 7 sensors. Suitable for emission monitoring of combustions and industrial processes Intuitive software menu and bright colour display will guide you through all measuring programs. Store up to 16.000 data sets directly in the analyser’s internal data storage or on micro-SD card, or even use Bluetooth™ for wireless data transfer to notebook or MRU4u data app for smartphone or tablet. Printing via infrared, high speed thermal printer is at the tip of your fingers.
Multigas analyser, designed for biogas measurements as well as engine fluegas. With OPTIMA Biogas we offer you additionally measurement of biogas pressure and temperature, gas flow velocity, with normalized flow rate calculation. OPTIMA Biogas may measure, given an appropriate sensor configuration, CHP engine exhaust gases as well.
