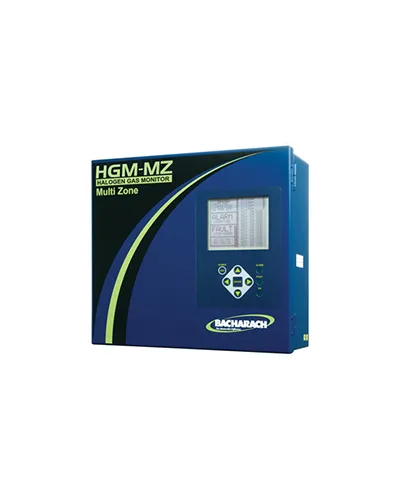

Type : 4 to 16 point sampling system using IR sensor technology
Gases :
Refrigerants : CFCs, HFCs, HCFCs, HFOs
Natural Refrigerants : Ammonia, Carbon Dioxide
Measuring range :
Refrigerants : 0 to 10,000 ppm
Ammonia : 25 to 10,000 ppm
Carbon Dioxide : 300 to 8,000 ppm
Sensitivity :
Refrigerants : 1 ppm
Ammonia : 25 ppm
Carbon Dioxide : 10 ppm
Sampling distance : 0 to 1,200 ft. (0 to 365 m) for each sampling point
Display : Backlit, graphic LCD 160 x 128 pixel; three status LEDs
Output digital : Modbus® RTU via RS 485
Output analog : 4 to 20 mA (optional)
Power supply : 100 to 240 VAC, 50 / 60 Hz
Relay : 3 alarm relays, 1 fault relay, SPDT & rating 5 A @ 250 VAC, resistive load
Ambient conditions
Temperature : 32 to +122 °F (0 to +50 °C)
Humidity : 5 to 90 %RH, non condensing
Altitude : 0 to 6,560 ft (2,000 m)
Enclosure : Powder-coated aluminum
Size (w x h x d) : Approx. 13.7” x 12.3” x 5” (350 x 315 x 130 mm)
Weight : Approx. 15 lbs. (6.8 kg)
Approvals : CE, UL, CSA, EN 61010-1, EN 61326, EN 14624
