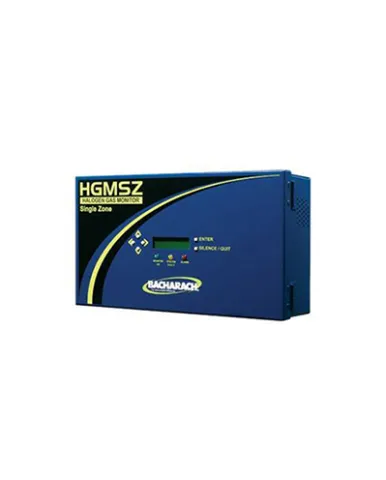

Type : Single point sampling system using proprietary IR sensor
Gases :
Refrigerants : CFCs, HFCs, HCFCs, HFOs
Natural refrigerants : Ammonia, Carbon Dioxide
Measuring range :
Refrigerants : 0 to 10,000 ppm
Ammonia : 25 to 10,000 ppm
Carbon dioxide : 300 to 8,000 ppm
Sensitivity :
Refrigerants : 1 ppm
Ammonia : 25 ppm
Carbon dioxide : 10 ppm
Sampling distance : 0 to 500 ft (0 to 150 m)
Display : Backlit graphic LCD, three status LEDs
Output : 4 to 20 mA
Power supply : 100 to 240 VAC, 50 / 60 Hz
Relays :
3 alarm relays, 1 fault relay, SPDT
Rating 3 A @ 250 VAC, resistive load
Ambient conditions :
Temperature : 32 to +122 °F (0 to +50 °C)
Humidity : 5 to 90 %RH, non condensing
Altitude : 0 to 6,560 ft (2,000 m)
Enclosure : Powder-coated aluminum housing
Size (w x h x d) : Approx. 13.7” x 7.7” x 3.6” (350 x 195 x 95 mm)
Weight : Approx. 7 lbs. (3.2 kg)
Approvals : CE, UL, CSA, EN 61010-1, EN 14624
