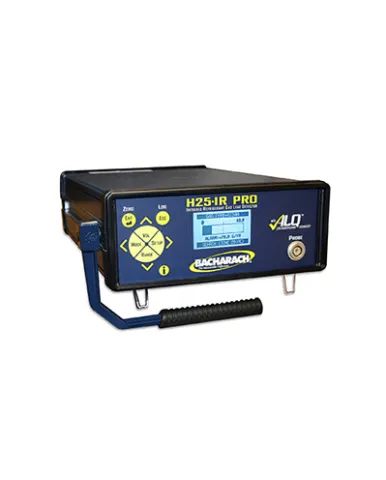

The H25-IR PRO is the latest industrial-grade gas leak analyzer capable of detecting 40+ refrigerant gases (standard model) in addition to R-290 (propane), R-600a (isobutane) and for special applications, CO2 and SF6. It uses Bacharach’s patented Advanced Leak Quantification (ALQ™) technology to quickly detect and quantify leaks, making this analyzer a truly powerful tool. The H25-IR PRO has many probe options, ranging from basic all the way to a “smart” probe that mirrors the instrument’s user interface. Probes are available in 6 and 12 ft. lengths, enabling the H25-IR PRO to be customized to specific applications and user requirements.
Gases measured (standard model) : all CFC, HFC and HCFC refrigerants, including but not limited to: R-11, R-12, R-21, R-22, R-23, R-32, R-113, R-114, R-123, R-124, R-125, R-134a, R-227, R-236fa, R-401A, R-402A, R-402B, R-404A, R-407A, R-407C, R-408A, R-409A, R-410A, R-422A, R-422D, R-424A, R-426A, R-427A, R-438A, R-500, R-502, R-503, R-507, R-508B, HFP, H-1211, HFO-1234yf, H-1301, H-2402, N-1230, FA-188 and FC-72
Measuring range : Standard and SF6 models : 0.03 to 3.49 oz/yr (1 to 99 g/yr) R-290 and R-600a models : 0.11 to 3.49 oz/yr (3 to 99 g/yr) CO2 models : 5-500 ppm above ambient Sensitivity : Standard and SF6 models : 0.03 oz/yr (1 g/yr) R-290 and R-600a models : 0.07 oz/yr (2 g/yr) CO2 models : 5 ppm above ambient Response time : < 1 second (typical, dependent on probe length) Leak indicators : Visual (instrument display and smart probe, if equipped) and audible (via internal speaker or headphones) Automatic background adjustment : Yes, in search mode Power : 100 to 240 VAC, 50/60 Hz Operating conditions : 32 to 122 °F (0 to 50 °C), 5 to 90% RH (non-condensing), 1 ATM Warm-up time : 1 minute Approvals : CE mark; UL/CSA/IEC/EN 61010-1 Size (H x W x D) : Unit : 15.5 x 10.8 x 4.0 in. (39.4 x 27.3 x 10.2 cm) Probe : 6 or 12 ft. (see ordering information) Weight : 18.0 lbs. (8.2 kg)
The GX-8000 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers and property in all kinds of harsh gas detection applications.
The RX-8000 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers and property in all kinds of harsh gas detection applications.
The RX-8500 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers and property in all kinds of harsh gas detection applications.
