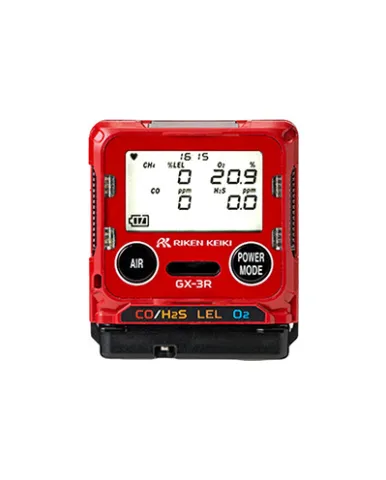

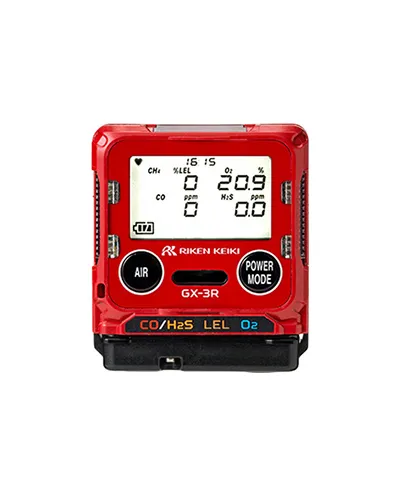

The newly developed dual-sensor configuration reduces size by approximately 30% compared to previous models. Light weight (about 100g) means it won’t interfere with your work.
Sampling method : Diffusion type Principle of detection : New Ceramic catalytic Method, Potentiostatic Electrolysis Method Detection range : 0 to 100 %LEL (HC/CH4) 0 to 40 vol% (O2) 0 to 2000 ppm (CO) 0 to 200 ppm (H2S) Type of alarm : Gas alarm / Fault alarm Display of alarm : Flashing light / buzzer / vibration Explosion protected construction : Intrinsic safety Explosion-proof class : IECEx : Ex da ia IIC T4 Ga / Ex da ia I Ma ATEX : II1G Ex da ia IIC T4 Ga / IM1 Ex da ia I Ma *With combustible gas sensor Ingress proof rating : IP66/68 Approvals : Japan Ex, ATEX, IECEx, Brazil Ex, China Ex, MED, EN 60079-29-1, EN 50104, JIS, JG, EN 45544 CE marking : EMC / ATEX / RoHS Power source : Lithium ion rechargeable battery unit Continuous operation : Approx. 40 hours after full charge (with long battery mode) Operating temperature range : -40 ℃ to +60 ℃ (no sudden changes) Operating humidity range : 0 to 95 %RH (no condensation) Dimensions : Approx. 58 (W) ×65 (H) × 26 (D) mm Weight : Approx. 100 g
Modern and powerful flue gas analyser for residential and commercial heating installations. DELTAsmart enables you to measure flue gas, pressure and temperature in one device. It is ideally suited for all control and adjustment work at gas, oil-fired, condensing and wood-burning boilers.
The slim multi talent handheld flue gas analyser using up to 7 sensors. Suitable for emission monitoring of combustions and industrial processes Intuitive software menu and bright colour display will guide you through all measuring programs. Store up to 16.000 data sets directly in the analyser’s internal data storage or on micro-SD card, or even use Bluetooth™ for wireless data transfer to notebook or MRU4u data app for smartphone or tablet. Printing via infrared, high speed thermal printer is at the tip of your fingers.
Multigas analyser, designed for biogas measurements as well as engine fluegas. With OPTIMA Biogas we offer you additionally measurement of biogas pressure and temperature, gas flow velocity, with normalized flow rate calculation. OPTIMA Biogas may measure, given an appropriate sensor configuration, CHP engine exhaust gases as well.
