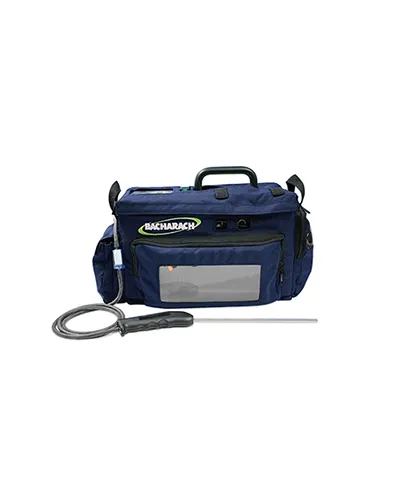

Portable Refrigerant Leak Detector - Bacharach PGM-IR

Category :
Gas Detector and Gas Analyzer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The PGM-IR offers superior performance and functionality for low ppm level leak detection of refrigerants, Carbon Dioxide, Nitrous Oxide or Sulfur Hexafluoride. A built-in library of 50 refrigerants enables the PGM-IR to accurately detect the smallest leaks at their source. The unit is immune to sudden changes in temperature or humidity and to over-exposure. The PGM-IR requires no zeroing of positive readings with extended exposure to gas. It has a data logging capacity of up to 200 readings. With its high flow rate, real-time ppm concentrations or TWA values are displayed instantly with corresponding audible tick-rate indicator to precisely pinpoint leaks. Rapid clearing time enables accurate ambient-air leak detection using the probe along a chiller or display-case.

Type : Portable Gas Monitor using infrared NDIR sensor
Refrigerants : CFCs, HFCs, HCFCs, HFOs
Natural refrigerant : CO2
Medicine and propellant : N2O
Inert gas : SF6
Measuring range :
Refrigerants : 0 to 10,000 ppm
CO2 : 0 to 8,000 ppm
N2O, SF6 : 0 to 1,000 ppm
Sensitivity : 1 ppm
Flow rate : 1 L/min (typical)
Response time : t90 ≤ 5 s
Display : Backlit graphic LCD; audible ticker
Battery : Rechargeable Li-Ion, 8 hours of continuous operating time
Temperature : 32 to +122 °F (0 to +50 °C)
Humidity : 5 to 90 %RH, non condensing
Altitude : 0 to 6,560 ft (2,000 m)
Enclosure : Powder coated aluminum in soft case with shoulder strap
Size (w x h x d) : Approx. 19” x 5” x 8” (500 x 130 x 200 mm)
Weight : Approx. 7 lbs. (3.2 kg)
Approvals : CE mark; NOT approved for use in classified, hazardous areas

More From Gas Detector and Gas Analyzer

Portable Gas Analyzer – MRU DELTAsmart

Modern and powerful flue gas analyser for residential and commercial heating installations. DELTAsmart enables you to measure flue gas, pressure and temperature in one device. It is ideally suited for all control and adjustment work at gas, oil-fired, condensing and wood-burning boilers.

Rp.123

See Details

Portable Gas Analyzer – MRU OPTIMA

The slim multi talent handheld flue gas analyser using up to 7 sensors. Suitable for emission monitoring of combustions and industrial processes Intuitive software menu and bright colour display will guide you through all measuring programs. Store up to 16.000 data sets directly in the analyser’s internal data storage or on micro-SD card, or even use Bluetooth™ for wireless data transfer to notebook or MRU4u data app for smartphone or tablet. Printing via infrared, high speed thermal printer is at the tip of your fingers.

Rp.123

See Details

Portable Gas Analyzer – MRU OPTIMA Biogas

Multigas analyser, designed for biogas measurements as well as engine fluegas. With OPTIMA Biogas we offer you additionally measurement of biogas pressure and temperature, gas flow velocity, with normalized flow rate calculation. OPTIMA Biogas may measure, given an appropriate sensor configuration, CHP engine exhaust gases as well.

Rp.123

See Details
