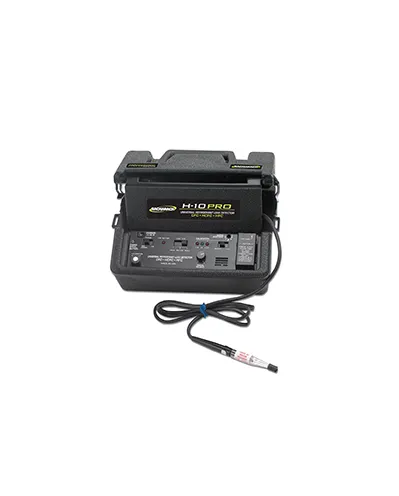

The H-10 PRO is a highly responsive universal refrigerant leak detector using Bacharach’s tried-and-true heated diode sensor technology. It’s ultra-sensitive to all halogen-based, non-flammable CFC, HFC and HCFC refrigerants for reliable use in a wide range of refrigerant leak detection applications. The H-10 PRO has a long probe (4.5 ft.) for detecting leaks in hard-to-reach areas, visual and audible indicators to show relative leak sizes and an auto-zeroing feature (automatic mode only) for finding leaks in backgrounds where target gas is present. It has an internal sensor calibration reference to ensure optimum performance.
Refrigerants detected : All CFC, HFC and HCFC refrigerants, including but not limited to: R-12, R-22, R-134a, R-404A, R-410A, R-502, R-507, HFO-1233zd, HFO-1234yf and HFO-1234ze Sensitivity : 0.006 oz/yr (stationary) & 0.1 oz/yr (moving per SAE J2791) Response time : 1 second Leak indicators : Visual (red LED in probe tip) and audible (via internal speaker or headphones) Automatic background adjustment : Yes, in automatic mode Power : 12 VDC internal rechargeable battery or via 100-240 VAC wall adapter/charger Run time : 3 hours (typical) on fully-charged battery Sensor life : 1 year (typical) Operating conditions : 32 to 104 °F (0 to 40 °C), 10 to 90% RH (non-condensing), 1 ATM Warm-up time : 2 minutes (approximate) Approvals : CE mark Size (H x W x D) : Unit : 8.3 x 10.5 x 5.4 in. (21.1 x 26.7 x 13.7 cm) Probe : 4.5 ft. (1.37 m) Weight : 5.1 lbs. (2.3 kg)
The GX-8000 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers and property in all kinds of harsh gas detection applications.
The RX-8000 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers and property in all kinds of harsh gas detection applications.
The RX-8500 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers and property in all kinds of harsh gas detection applications.
