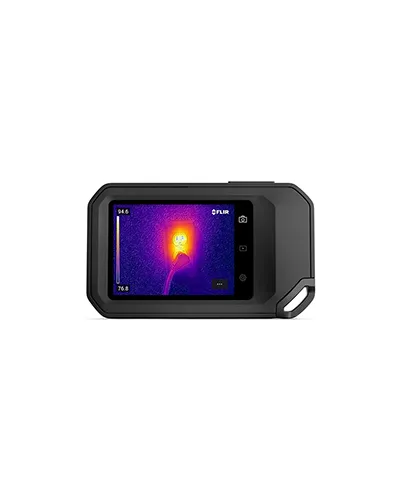

The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
Specifications : IR Resolution : 128 × 96 pixels Thermal Sensitivity/NETD : <70 mK Accuracy : 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] Field of view (FOV) : 53.6° Digital Camera : 5 MP resolution Image Modes : Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) Storage Media : Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Imaging & optical : Auto orientation : Yes Camera software update : Automatic over Wi-Fi, USB via computer Color : Black Color Palettes : Iron, Gray, Rainbow, Rainbow HC Detector Pitch : 12 µm Detector Type : Focal plane array, uncooled microbolometer Digital Camera : 5 MP resolution Digital Camera FOV : 71.5° × 56° (84° diagonal) Digital Zoom : No Display resolution : 640 × 480 pixels f-number : 1.1 Focus : Focus free Gallery : Thumbnails and custom folder structure Image Frequency : 8.7 Hz Image Modes : Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) IR Resolution : 128 × 96 pixels Minimum Focus Distance : Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft) Spatial resolution (IFOV) : 7.9 mrad/pixel Spectral Range : 8 to 14 µm Thermal Sensitivity/NETD : <70 mK Video Lamp : Yes
Measurement & analysis : Accuracy : 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] Camera size (L x W x H) : 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) Measurements correction : Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation Object Temperature Range : -20 to 300°C (-4 to 572°F) Set-up Commands : Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low)
Housing material : PC and ABS, partially covered with TPE; aluminum Packaging Size : 160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in) Packaging Weight : 0.52 kg (1.14 lb) Size (L x W x H) : 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
