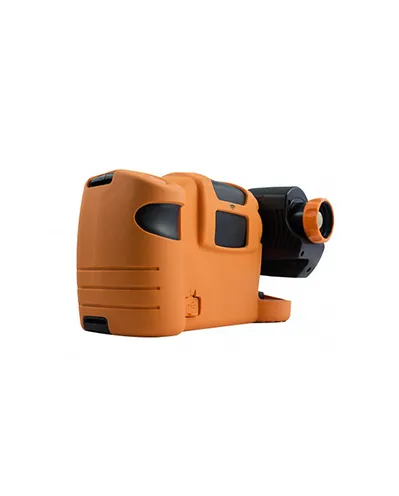

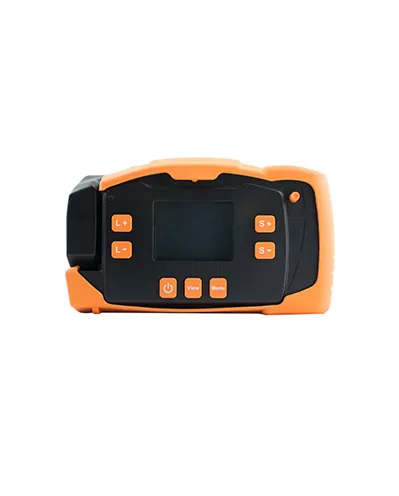

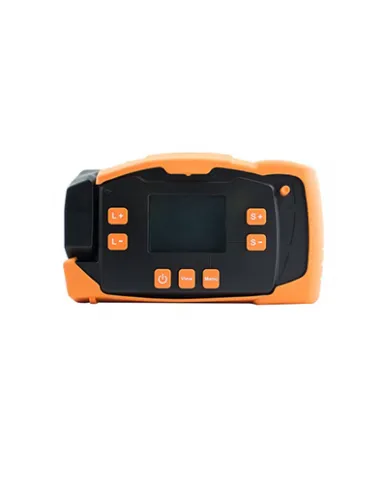

CorDEX TCSERIES Intrinsically safe cameras do. They give you the ability to see heat and detect problems before they happen. All from a tool that is virtually indestructible in everyday use. With its Intrinsically Safe certification when it comes to Rugged, TC-Series sets the bar. IP54 Ingress Protection rated, you can be sure these cameras will continue to operate in any weather, day or night. TC-Series has been tested and certified as having passed a 3’/1m drop onto concrete at a temperature of -20C. Three times!
Measurement Range : -4°F to 1112°F (-20°C to +600°C ) Accuracy : ± 2°C or 2% of reading Image Frequency : 9Hz Detector : 320 x 240 uncooled microbolometer Thermal Sensitivity/NETD : 50mK Spectral Range : 8μm to 14μm Field of View (FOV) : 25° x 20.5° Spatial resolution (IFOV) : 1.38 mrad Minimum focus distance : ≈ 4” (10cm) Lens : F 1.2 File Storage : 8GB File Formats : CDX (Radiometric) JPEG (Non-radiometric) Voice Annotation : YES Operating Temperature : -4°F to 104°F (-20°C to +40°C) Storage Temperature : -40°F to +158°F (-40°C to +70°C) Display : 3.2” Backlit LCD Software :CorDEX CONNECT (Included) Batteries Rechargeable : Lithium-ion
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
