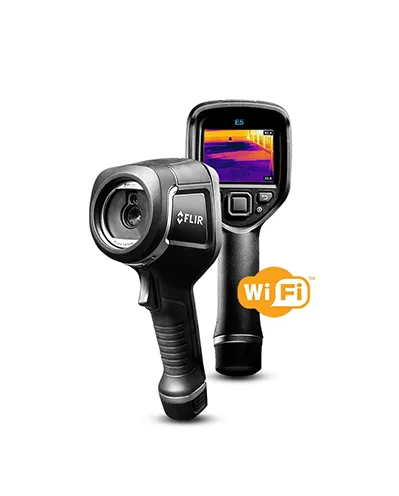

FLIR E5-XT is the perfect tool for quickly locating and diagnosing electrical, mechanical, and building problems, thanks to its 19,200 (160 × 120) pixel infrared detector and expanded, -20°C to 400°C (-4°F to 752°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in WiFi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.
Specifications : IR Resolution : 160 × 120 pixels Thermal Sensitivity/NETD : <0.10°C (0.27°F) / <100 mK Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) Field of view (FOV) : 45° × 34° Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. Display : 3.0 in. 320 × 240 color LCD
Imaging & optical : Color : Black and gray Color Palettes : Black & white, iron, and rainbow Detector Type : Uncooled microbolometer Field of view (FOV) : 45° × 34° FLIR Screen-EST Mode : No f-number : 1.5 Focus : Focus free Image Frequency : 9 Hz Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. IR Resolution : 160 × 120 pixels Minimum Focus Distance : 0.5 m (1.6 ft.) Multi Spectral Dynamic Imaging (MSX) : IR image enhanced with visible camera detail Picture-in-Picture : IR area on visual image Spatial resolution (IFOV) : 5.2 mrad Spectral Range : 7.5–13 µm Thermal Sensitivity/NETD : <0.10°C (0.27°F) / <100 mK
Measurement & analysis : Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) Isotherm : Above alarm, below alarm Object Temperature Range : –20°C to 400°C (-4°F to 752°F) in two ranges Reflected apparent temperature correction : Automatic, based on input of reflected temperature Set-up Commands : Local adaptation of units, language, date and time formats Spot Meter : Center spot; box with min./max.
List of Contents : •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation Packaging Size : 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) Camera size (L x W x H) : 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) Camera weight incl battery : 0.575 kg (1.27 lb.)
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
