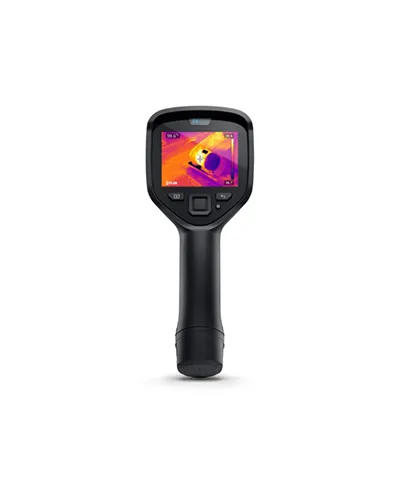

The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.
Specifications : IR Resolution 320 × 240 (76,800 pixels) Thermal Sensitivity/NETD <0.04°C (0.07°F) / <40 mK at 30°C (86°F) Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) Field of view (FOV) : 33° Digital Camera : 5 MP Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Digital camera Display : 3.5 in, 640 × 480 color LCD Storage Media : Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
Imaging & optical : Color Palettes : Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC Detector Type : Uncooled microbolometer Digital Camera : 5 MP Field of view (FOV) : 33° Focus : Focus free Image Frequency : 9 Hz Image Modes : Thermal MSX, Thermal, Picture-in-Picture, Digital camera IR Resolution : 320 × 240 (76,800 pixels) Minimum Focus Distance : 0.36 m (1.18 ft) Spectral Range : 7.5 µm to 13 µm Thermal Sensitivity/NETD : <0.04°C (0.07°F) / <40 mK at 30°C (86°F)
Measurement & analysis : Accuracy : ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) Delta T : Yes, NFPA 70B compliant Isotherm : Above alarm, below alarm Measurements correction : Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation Object Temperature Range : -20°C to 550°C (-4°F to 1022°F) in two ranges Spot Meter : Center spot; box with min/max
Flashlight : Bright LED List of Contents : Infrared camera, hard transport case, battery (inside camera) + extra battery, tabletop charger, power supply (with EU, UK, US and AU plugs), micro USB adapter, FLIR Thermal Studio Starter, and printed documentation Packaging Size : 385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in)
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
