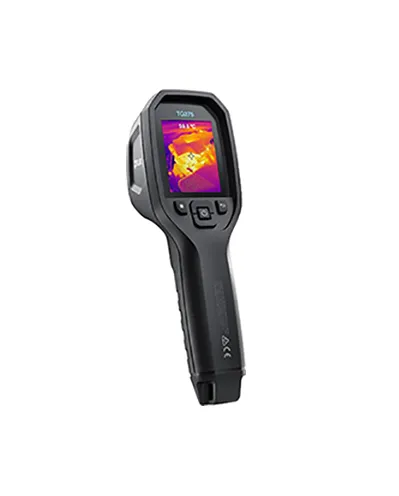

The FLIR TG275 is designed specifically for automotive maintenance and repair technicians who want to accelerate diagnostic procedures and avoid undetected problems. Featuring IGM™ (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you troubleshoot repairs, spot potential faults, and record images that will reassure your customer that the problem has been fixed. This affordable thermal imager is ideal for diagnosing problems in relays and switches, parasitic drain on the battery, drive train components, HVAC system (vents), and much more.
Specifications : IR Resolution : 160 × 120 pixels Thermal Sensitivity/NETD : <70 mK Accuracy : ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F) Field of view (FOV) : 57° × 44° Image Modes : • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading Display : 320 × 240 pixel, 2.4 in color LCD Storage Media : eMMC 4 GB
Imaging & optical : Automatic Image Adjustment : Yes Built-in Digital Camera : Yes Color Palettes : Iron, Rainbow, White hot, Black hot, Arctic, Lava Detector Pitch : 12 µm Detector Type : Focal plane array (FPA), uncooled microbolometer Digital image enhancement : Yes Field of view (FOV) : 57° × 44° Focus : Focus free Gallery : Yes Image Frequency : 8.7 Hz Image Modes : • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading IR Resolution : 160 × 120 pixels Laser : Class 1 laser indicates the temperature measurement area; button-activated Minimum Focus Distance : 0.3 m (0.98 ft.) Minimum Measurement Distance : 0.26 m (0.85 ft) Spectral Range : 7.5–14 µm Thermal Sensitivity/NETD : <70 mK
Measurement & analysis : Accuracy : ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F) Center spot : Yes Emissivity Correction : Yes: 4 preset levels with custom adjustment of 0.1–0.99 Object Temperature Range : -25°C to 550°C (-13°F to 1022°F) Set-up Commands : • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images Spot Meter : Center spot on/off
Includes : TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch Camera size (L x W x H) : 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in) Camera weight incl battery : 0.394 kg (13.9 oz)
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
