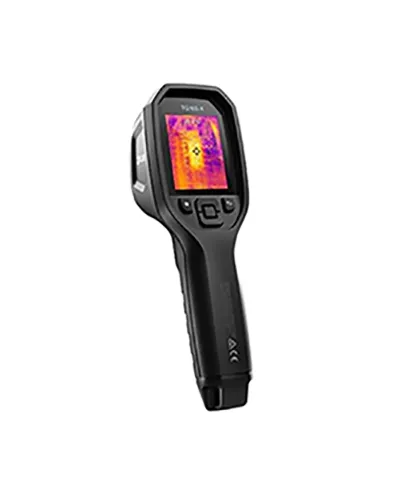

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
Specifications : IR Resolution : 80 × 60 pixels Thermal Sensitivity/NETD : <70 mK Accuracy : 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" Field of view (FOV) : 51° × 66° Image Modes : MSX® (Multi Spectral Dynamic Imaging), visual Storage Media : eMMC 4 GB
Imaging & optical : Camera software update : Using USB cable or SD card Color Palettes : Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava Detector Pitch : 17 µm Digital image enhancement : No Display resolution : 320 × 240 pixels Field of View : 71° × 56°, adapts to the IR lens Field of view (FOV) : 51° × 66° Focal Plane Array (FPA) - Spectral range : Uncooled microbolometer/7.5–14 µm Focus : Fixed Gallery : Yes Image Frequency : 8.7 Hz Image Modes : MSX® (Multi Spectral Dynamic Imaging), visual IR Resolution : 80 × 60 pixels Laser : Class 1 Minimum Focus Distance: 0.3 m (0.98 ft) Minimum Measurement Distance : 0.26 m (0.85 ft.) Resolution : 2 MP (1600 × 1200 pixels) Thermal Sensitivity/NETD : <70 Mk
Measurement & analysis : Accuracy : 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" Distance to Spot Ratio (D:S) : 24:1 Emissivity Correction : Yes: 4 pre-set levels with custom adjustment of 0.1–0.99 Object Temperature Range : -25°C to 300°C (-13°F to 572°F) Set-up Commands : Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images Spot Meter : Center spot on/off
Flashlight : LED on/off Laser Pointer : Indicating the size of the measurement area Light Output : 100 lumens Size [L × W × H] : 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) Weight [battery included] : 0.394 kg (13.9 oz)
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
