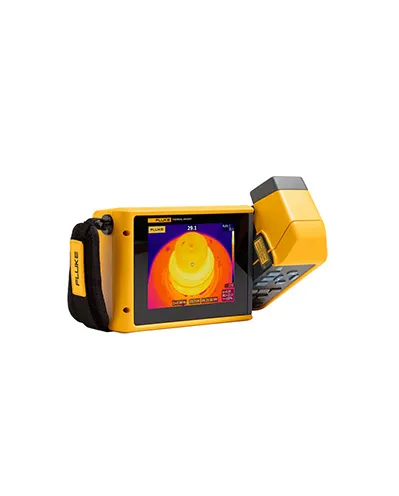

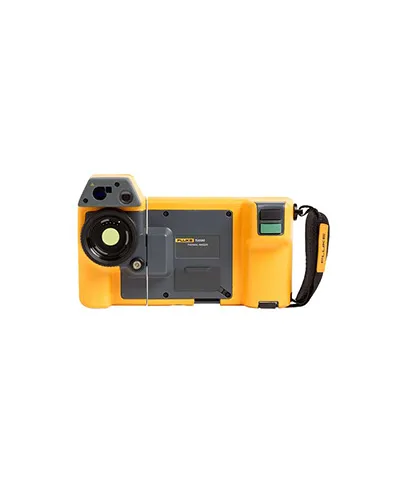

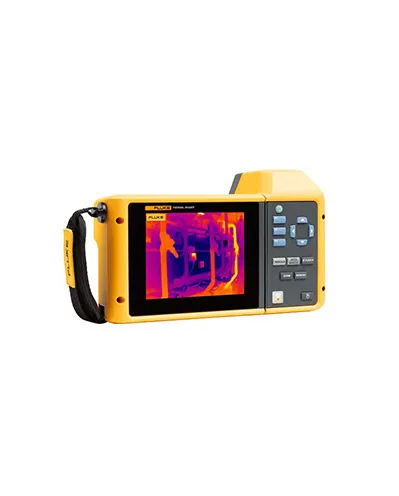

The TiX580 is a rugged and superbly engineered 640 x 480 thermal imaging camera. Users can now perform thermal imaging inspections with more confidence and faster results than ever before - all with the ruggedness and ease of use expected from Fluke. Fluke Connect SmartView desktop software is a comprehensive and connected software platform that represents the future of integrated equipment maintenance, monitoring, analysis and reporting. It's easier than ever to optimize thermal images, perform analytics, generate quick, customizable, robust reports, and export images to the format of your choice in the cloud.
IFOV with standard lens (spatial resolution) : 0.93 mRad, D:S 1065:1 Detector resolution : 640 x 480 (307,200 pixels) SuperResolution : Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image MultiSharp™ Focus : Yes, focused near and far, throughout the field of view LaserSharp® Auto Focus : Yes, for consistently in-focus images. Every. Single. Time. Laser distance meter : Yes, calculates distance to the target for precisely focused images and displays distance on screen Advanced manual focus : Yes Touchscreen display (capacitive) : 5.7 inch (14.4 cm) landscape 640 x 480 LCD Rugged, ergonomic design : 240 ° rotatable (articulating) lens Digital zoom : 2x, 4x, and 8x Temperature measurement range (not calibrated below -10 °C) : -20 °C to +800 °C (-4 °F to +1472 °F) Accuracy : ±2 °C or 2% (at 25 °C nominal, whichever is greater) Thermal sensitivity (NETD)* : ≤ 0.05 °C at 30 °C target temp (50 mK) On-screen emissivity correction : Yes (both value and table) On-screen reflected background temperature compensation : Yes On-screen transmission correction : Yes Live line marker : Yes
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
