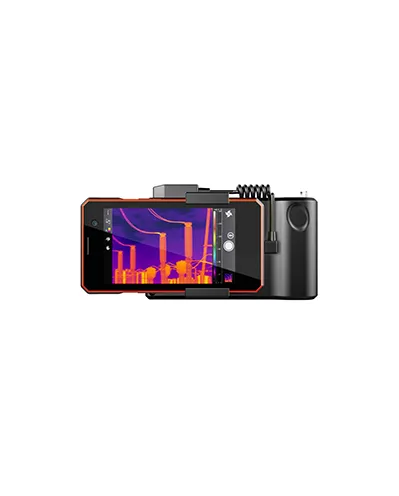

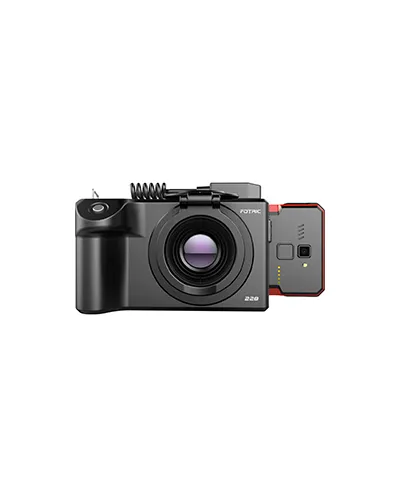

Fotric 228 is a high quality thermal imaging camera with a built-in S7 smartphone to provide easy operation, thermal analysis, and communication capabilities. Using a 640 x 480 pixel sensor, the 228 has a 28.7deg x 21.6deg field of view. The minimum focal length with a standard lens is 4” with manual focusing – more precise/selectable than autofocus, with a built-in 8x continuous digital zoom. 8 movable regions of interest can be defined, with emissivity adjustably set for each area. The Fotric 220 Series of thermal cameras combine infrared technology with smartphone capabilities. The easy to learn smartphone app controls all functions. These cameras can record up to 1000 frames of full radiometric video and capture temperature change processes in real time with a user-defined sampling rate of up to 5 frames/sec
IR Resolution : 640 × 480 pixels Field of View (FOV) : 28.7°× 21.6° Temperature Range : -20 C to 650 C Minimum Focus Length : 0.1m (Standard Lens) Spatial Resolution (IFOV) : 0.78mrad Thermal Sensitivity (NETD) : ≤0.05 C @ 30 C Measurement Accuracy : ±2 C or ±2% whichever is greater @ environment temperature 10 C to 35 C Focus : Manual Spectral Range : 8~14μm Detector Type : Focal Plane Array (FPA) uncooled microbolometer Zoom : 10X continuous digital zoom Palettes : 15 palette options (Gray White, Gray Red, Iron Red, Rainbow, etc.) Palette Switching : Tap palette icon Noise Calibration : Automatic noise calibration FFC / manual noise calibration FFC Emissivity Adjustment : 0.1 to 1.0 Regional Emissivity Adjustment : Support Automatic Capture of High and Low Temperature : Support Battery Operating Time : 10 hours Charging System : AC Power Adapter Charging Voltage : 12V DC Charger Operating Temperature : -20 C to +50 C Storage Temperature : -20 C to +50 C Humidity : <90%RH Enclosure Rating : IP40 FCC Certification : CFR 47 Part 15.107 and CFR 47 Part 15.109 Tripod Mounting : UNC1/4 -20 Image Format : Standard JPEG, including raw temperature data, radiometric Dimensions (LxHxW) : 118×145×93.5mm Weight : 560 g
Fotric 225 is a high quality thermal imaging camera with a built-in J7 smartphone to provide easy operation, thermal analysis, and communication capabilities. Using a 320 x 240 pixel sensor, the 225 has a 24deg x 18deg field of view. The minimum focus distance is 6” with manual focusing – more precise/selectable than autofocus, with a built-in 8x continuous digital zoom. 8 movable regions of interest can be defined, with emissivity adjustably set for each area. The Fotric 220 Series of thermal cameras combine infrared technology with smartphone capabilities. The easy to learn smartphone app controls all functions. These cameras can record up to 1000 frames of full radiometric video and capture temperature change processes in real time with a user-defined sampling rate of up to 5 frames/sec
Fotric 226 is a high quality thermal imaging camera with a built-in J7 smartphone to provide easy operation, thermal analysis, and communication capabilities. Using a 384 x 288 pixel sensor, the 226 has a 28deg x 21deg field of view. The minimum focal length with a standard lens is 6” with manual focusing – more precise/selectable than autofocus, with a built-in 8x continuous digital zoom. 8 movable regions of interest can be defined, with emissivity adjustably set for each area. The Fotric 220 Series of thermal cameras combine infrared technology with smartphone capabilities. The easy to learn smartphone app controls all functions. These cameras can record up to 1000 frames of full radiometric video and capture temperature change processes in real time with a user-defined sampling rate of up to 5 frames/sec
Fotric 226B Infrared Thermal Imager, a standalone infrared camera and PC software combination that provides safe, non-contact measurement of passing human traffic, without requiring person-to-person contact, ensuring the safety of the detection personnel themselves. It has a millisecond response time which automatically locks on to facial outlines to give accurate non-contact temperature measurements. This fast response means that it does not affect traffic flow or behavior habits, yet can quickly detect people with potential health issues. When the Fotric 226B detects a face with an above-normal body temperature, an audible alarm is immediately triggered, a red box is placed on the PC image of the target face, and a high quality image is captured with the accurate body temperature overlaid. WLIR software then automatically emits a buzzer alarm to alert support personnel
