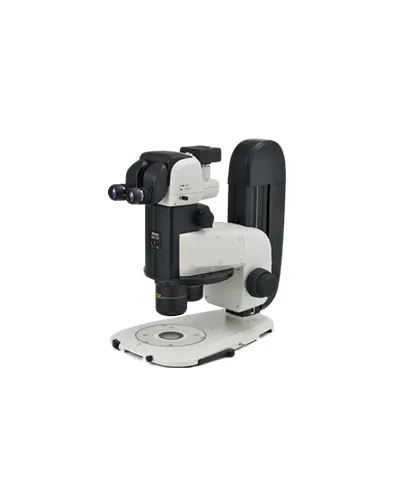

Nikon's SMZ18 research stereomicroscope combines macro and micro imaging in one manual instrument for convenient, affordable viewing and manipulation of single cells to whole organisms. A high-performance fly-eye lens provides crystal-clear fluorescent images, with uniform brightness across the entire field of view. Using enhanced epi-fluorescence technology, the SMZ18 is better able to detect excitation light than conventional fluorescent stereomicroscopes, for improved S/N ratios and bright, high-contrast images, even in the low magnification range. Integrated intelligence allows SMZ18 to save imaging parameters along with the captured image as a convenient data file.
Zooming Body Optical System : Parallel-optics type (zooming type), apochromatic optical system Zoom : Manual Zoom Ratio : 18:1 Zoom Range : 0.75–13.5x Aperture Diaphragm : Zooming body built-in Objectives NA, WD (mm) P2-SHR Plan Apo 2x : 0.3, 20 (with a correction ring for water 0 to 3mm in depth) P2-SHR Plan Apo 1.6× : 0.24, 30 P2-SHR Plan Apo 1× : 0.15, 60 P2-SHR Plan Apo 0.5× : 0.075, 71 Total Magnification (Using 10x eyepieces) : 3.75-270x (Depending on objective used) Eyepieces (F.O.V. mm) : C-W 10xB(22) , C-W 15x(16) , C-W 20x(12.5) , C-W 30x(7) Tubes (Eyepiece/Port) : P2-TERG 100 Trinocular Tilting tube (100/0 : 0/100), P2-TERG 50 Trinocular Tilting tube (100/0 : 50/50), Inclination angle : 0°~30°, P2-TL100 Trinocular Tube L (100/0 : 0/100) Inclination angle : 15° Weight (approx.) : 30kg Power Consumption (approx.) : 10W
The excellent optics and mechanical components make the iScope® a state of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields The iScope® fluorescence microscope can be supplied with : 6-position rotating attachment with 100 W mercury vapor light source, 3-position slider attachment with 100 W mercury vapor light source, 1-position slider attachment with a 3 W NeoLED™ 465-475 nm blue light source and 1-position slider attachment with a 3 W NeoLED™ 520-530 nm green light source
The well-equipped microscopes of the bScope series are intensively used in universities, small and mid-sized laboratories and in veterinary applications The design of he bScope® is both ergonomic and evolutive. Height adjustable eyetubes and low stage controls to minimize fatigue during long working sessions and so providing more comfort for icroscopists. The robust, compact size of the bScope® and the Cable Storage System allows more working space, safer operation and enables easy storage
The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epiillumination sources for fluorescence applications can be used. iScope models with multiheads are also available for teaching purposes
