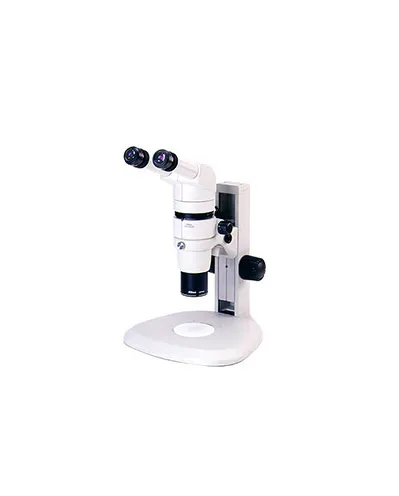

SMZ800N is new stereomicroscope offers improved work efficiency with evolved operations. Expanding the magnification range to 8x (1x -8x), Nikon's newest stereomicroscope boasts its ease of use and high-definition observation demanded in fields such as the IVF market. Additionally, newly developed “Plan Apo WF” and “ED plan WF” objectives deliver clearer, crisper images. Amazingly clear and bright images with reduced chromatic aberrations can be acquired throughout the extended zoom range through the newly developed “Plan Apo WF” and “ED plan WF” objectives.
Optical System : Parallel-optics type (zooming type) Zoom Ratio : 8:1 Zoom Range : 1 – 8x (1/2/3/4/6/8x stops) Total Magnification : 5 – 480x (depending on eyepiece and objectives) (coaxial episcopic illuminator: 22.5 – 540x) Tubes : Eyepiece inclination: 20° (P-B Binocular Tube) / 15° (P-TL100 Trinocular Tube) / 0°-30° (P-TERG100 Trinocular Tilting Tube, P-TERG50 Trinocular Tilting Tube) Eyepieces C-W10xB (F.N. 22), C-W15x (F.N. 16), C-W20x (F.N. 12.5), C-W30x (F.N. 7) Objectives : Plan Apo 0.5x/WF, Plan Apo 0.75x/WF, Plan Apo 1x/WF, ED Plan 1.5x/WF, ED Plan 2x/WF, Plan 1x, ED Plan 0.75x, Achro 0.5x Working Distance : 78mm(with Plan 1x) Weight (approx.) : 6.8 kg (with P-B Binocular Tube + C-PSN Plain Stand)
The excellent optics and mechanical components make the iScope® a state of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields The iScope® fluorescence microscope can be supplied with : 6-position rotating attachment with 100 W mercury vapor light source, 3-position slider attachment with 100 W mercury vapor light source, 1-position slider attachment with a 3 W NeoLED™ 465-475 nm blue light source and 1-position slider attachment with a 3 W NeoLED™ 520-530 nm green light source
The well-equipped microscopes of the bScope series are intensively used in universities, small and mid-sized laboratories and in veterinary applications The design of he bScope® is both ergonomic and evolutive. Height adjustable eyetubes and low stage controls to minimize fatigue during long working sessions and so providing more comfort for icroscopists. The robust, compact size of the bScope® and the Cable Storage System allows more working space, safer operation and enables easy storage
The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epiillumination sources for fluorescence applications can be used. iScope models with multiheads are also available for teaching purposes
