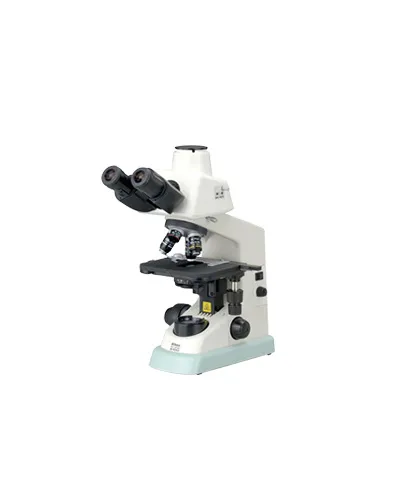

Designed for years of high quality use, the Eclipse E100-LED is an upright microscope with outstanding optical performance combined with elegant ergonomic touches. The E100-LED, ideal as an educational or student microscope, incorporates Nikon's exclusive CFI infinity optical system and an high-intensity LED eco-illumination system that is IR-free, virtually eliminating eyestrain for users. In addition, advanced Nikon BE Plan Achromat objectives have been designed especially for the E100 with excellent optical corrections and very flat optical performance. This means clear, bright images at every magnification.
Optical system : CFI45 Infinity Optical System Illumination : High luminescent white LED illuminator (Eco-illumination) & 6V20W halogen lamp, Compliant multi-voltage (100 V-240 V) Eyepieces (F.O.V.) : CFI E 10x (18 mm) & CFI E 15x (12 mm) Focusing : Coaxial coarse/fine focusing, Cross roller guide, Focusing stroke: 22 mm, Coarse: 37.7 mm/rotation, Fine: 0.2 mm/rotation, Coarse motion torque adjustable Eyepiece Tube : E2-TB Binocular Tube & E2-TF Trinocular Tube, Eyepiece/Port: 100/0, 0/100, 360º rotatable Nosepiece : Quadruple nosepiece (within main body), Revolving mechanism with multiple ball bearings, Elastic nosepiece grip-ring Stages : Rectangular mechanical stage (within main body), with specimen holder, with vernier calibrations, Cross travel: 76 (X) x 40 (Y) mm Observation methods : Brightfield, Darkfield, Phase contrast Optional accessories : Phase contrast attachment, Object marker, Darkfield ring unit, Mirror unit, Cord hanger, Storage case Power Consumption (max.) : Normal value: 3 W (LED model), 33 W (halogen model) Weight (approx.) : 6 kg (Binocular standard set)
The excellent optics and mechanical components make the iScope® a state of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields The iScope® fluorescence microscope can be supplied with : 6-position rotating attachment with 100 W mercury vapor light source, 3-position slider attachment with 100 W mercury vapor light source, 1-position slider attachment with a 3 W NeoLED™ 465-475 nm blue light source and 1-position slider attachment with a 3 W NeoLED™ 520-530 nm green light source
The well-equipped microscopes of the bScope series are intensively used in universities, small and mid-sized laboratories and in veterinary applications The design of he bScope® is both ergonomic and evolutive. Height adjustable eyetubes and low stage controls to minimize fatigue during long working sessions and so providing more comfort for icroscopists. The robust, compact size of the bScope® and the Cable Storage System allows more working space, safer operation and enables easy storage
The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epiillumination sources for fluorescence applications can be used. iScope models with multiheads are also available for teaching purposes
