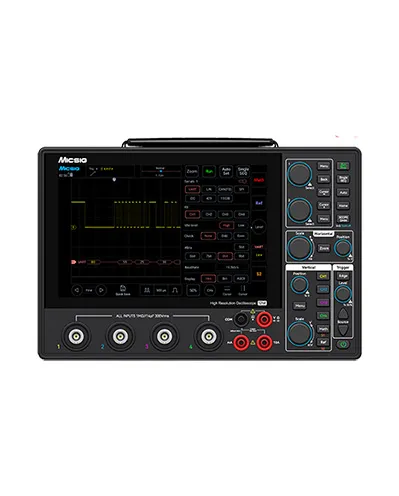

Vertical system
DC gain accuracy : ≤1%
Bandwidth filter : 20MHz、High Pass / Low Pass
Coupling : DC,AC,GND
Input impedance and accuracy : 1MΩ±1%
Vertical resolution : 12 Bit
Vertical divisons : 10div
Vertical scale factor : 1mV/div~10V/div
Max. input voltage : CAT I 300Vrms 400Vpk
Channel isolation : ＞40dB（≤100MHz），＞35dB（＞100MHz）
Vertical expansion reference : Screen center, channel zero point
Probe Attenuation Ratio : 1mX~10kX, 1-2-5 sequence, support customization
Horizontal system
Horizontal scale : 2ns/div~1ks/div
Roll mode range : 100ms/div~1ks/div
Time base accuracy : 20ppm
Horizontal divisions : 11div
Time base delay time range : -11div ~ 11ks, resolution: 1 pixel
Trigger System
Trigger mode : Auto, Normal, Single
Trigger level range : ±5div from screen center, analog channel
Hold off range : 200ns~10s
Trigger Types : Edge, Pulse Width, Logic, N Edge, Runt Pulse (Runt), Slope, Time Out, Video, Serial
Bus decoding : RS-232/422/485/UART、CAN、CAN FD、LIN、SPI、I2C、ARINC429、1553B
Sampling System
Real-time sampling rate(Max.) : 1GSa/s (single channel); 500MSa/s (half channel); 250MSa/s (Full channel)
Memory depth (Max.) : 110Mpts (single channel); 55Mpts (half channel); 27.5Mpts (Full channel)
Segmented storage function : Support up to 10,000 segments
Average times : 2,4,8,16,32,64,128,256
Envelope times : 2,4,8,16,32,64,128,256,∞
Measurements
Auto measurements : Period, frequency, rise time, fall time, delay, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width, burst pulse width, positive overshoot, negative overshoot, phase, peak-to-peak, Amplitude, High, Low, Maximum, Minimum, RMS, C RMS, Average, C Average, AC RMS, Positive Slope, Negative Slope
*C represents the first period, indicating a certain value in the first period of the waveform
Hardware frequency counter : Support each analog channel, 6bit, 2Hz~max. bandwidth, pk-pk > 0.8div
Cursor : Horizontal, Vertical, Cross
Cursor resolution : 1 pixel
Bandwith : 200MHz
Rise time : ≤1.75ns
Analog channels : 4
Sampling rate : 1GSa/s
Memory depth : 110Mpts
Waveform capture rate : 50,000wfms/s
Configuration : Software used for system integration
Interface : USB 3.0 Host、USB Type-C、LAN、HDMI、Trigger out
Vertical resolution : 12 bit
Input Impedance : 50Ω / 1MΩ
Noise : ＜85μVrms
Bus decoding(std.) : RS-232/422/485/UART、CAN、CAN FD、LIN、SPI、I²C、ARINC429、1553B
Interfaces : USB 3.0/2.0 Host、USB Type-C、LAN、SFP+、HDMI、Trigger in/out、10MHz in/out
Display : 8" TFT LCD capacitive touch screen, 1280*800 pixels
Battery（optional）: 3.7 V、16000mAh Lithium-ion battery
Charging : Standard DC 12V adapter, supports Type-C charging
Multifunction Meter Accuracy : 45⁄₆ Digits
Dimension : 265*174*31 mm
Netweight : 2 kg
