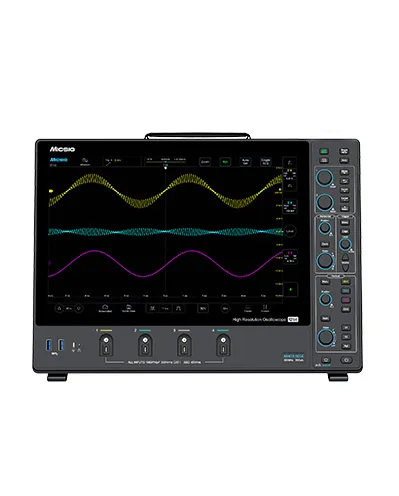

MHO 3 series oscilloscope features 4 analog channels, max. 500MHz bandwidth, 3GSa/s real time sampling rate, and 360Mpts memory depth. With 3.58cm ultra-thin body and wall mount interface, significantly saved desktop space; 14-inch touchscreen with resolution of 1920 x 1200 provides ultimate clear waveform display. The MHO 3 series utilizes a 12-bit high-resolution ADC with a quantization level of up to 4096, enable engineers to observe waveform details more comprehensively and clearly.
Vertical system Bandwidthfilter : 20MHz, HighPass/LowPass Coupling : DC,AC,GND Input impedance and accuracy : 1MΩ±1%||50Ω±1% Vertical resolution : 12bits Vertica ldivisons : 10div Vertical scale factor : 1mV/div~10V/div(1MΩ);1mV/div~1V/div(50Ω) DC Gain accuracy : 5mV/div~10V/div:≤±2.0%;≤2mV/div:≤±3.0% Vertical offset range(1MΩ/50Ω) : ±2.5V(@probeX1,<500mV/div),±125V(@probeX1,≥500mV/div) Noise floor : ≤80μVrms(1mV/div,1MΩ) Max.input voltage : CATI300Vrms 400Vpk(1MΩ),5Vrms(50Ω) Channel isolation : >40dB(≤100MHz),>35dB(>100MHz) Vertical expansion datum : Screencenter,channelzeropoint Probe AttenuationRatio : 1mX~10kX,1-2-5sequence,supportcustomization Trigger System Trigger mode : Auto,Normal,Single Triggerlevel range(analog) : ±5divfromscreencenter,analogchannel Hold off range : 200ns~10s Trigger coupling and frequency(analog) : DC,AC(110Hz), lowfrequency(58kHz),highfrequency(58kHz),noise(18MHz) Trigger Types : Edge,PulseWidth,Logic,NEdge,RuntPulse(Runt),Slope,TimeOut,Video,Serial Bus decoding : RS-232/422/485/UART,CAN,CANFD,LIN,SPI, I2C,ARINC429,1553B Sampling System Real-time sampling rate : 3GSa/s(Eitheroneof CH1&CH2isopen,andeitheroneof CH3&CH4isopen); 1.5GSa/s(BothCH1and2CH,orbothCH3andCH4areopen) Memory depth(Max.) : 360Mpts/36M/3.6M/360K/36K/3.6K/Auto(Eitheroneof CH1&CH2isopen,andeitheroneof CH3&CH4); 180Mpts/18M/1.8M/180K/18K/1.8K/Auto(BothCH1and2CH,orbothCH3andCH4areopen) Peak sampling interval :singlechannel333ps, dualchannel666ps Average : 2,4,8,16,32,64,128,256 Envelope times : 2,4,8,16,32,64,128,256,∞ Auto measurements : Period, frequency, rise time, fall time, delay, positive duty cycle,negative duty cycle, positive pulse width, negative pulse width, burst pulse width,positive over shoot,negative over shoot, phase,peak-to-peak, Amplitude, High, Low, Maximum, Minimum, RMS, CRMS, A verage,C Average, ACRMS, Positive Slope,Negative Slope *C represents the first period, indicating a certain value in the first period of the wave form Hardware frequency counter and resolution : Supporteachanalogchannel,6bit,2Hz~max.bandwidth,pk-pk>0.8div Cursor : Horizontal,Vertical,Cross Cursor resolution : 1pixel Bandwith : 350MHz Rise time : ≤1ns Analog channels : 4 Sampling rate : 3GSa/s Memory depth : 360Mpts Waveform capture rate : 230,000wfms/s Interface : USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out, 10 MHz clock signal In/Out Vertical resolution : 12 bit Noise : <80μVrms Bus decoding(std.) : RS-232/422/485/UART,CAN,CANFD,LIN,SPI, I²C, ARINC-429, MIL-STD-1553B Interfaces : USB3.0Host,USBtype-C,LAN,HDMI,Triggerout Display : 14''TFTLCDtouchscreen,1920*1200resolution Dimension : 400*280*35.8mm Netweight : 4.3kg
The MDOseries digital storage oscilloscope is a bench-top oscilloscope that features 4 analog channels, max. 500MHz bandwidth, 3GSa/s real-time sampling rate, and 360Mpts memory depth. With 3.58cm ultra-thin design, it supports wall / arm mounting; 14-inch touchscreen with highest resolution of 1920 x 1200, brings ultimate clear waveform display.
The MDOseries digital storage oscilloscope is a bench-top oscilloscope that features 4 analog channels, max. 500MHz bandwidth, 3GSa/s real-time sampling rate, and 360Mpts memory depth. With 3.58cm ultra-thin design, it supports wall / arm mounting; 14-inch touchscreen with highest resolution of 1920 x 1200, brings ultimate clear waveform display.
The MDOseries digital storage oscilloscope is a bench-top oscilloscope that features 4 analog channels, max. 500MHz bandwidth, 3GSa/s real-time sampling rate, and 360Mpts memory depth. With 3.58cm ultra-thin design, it supports wall / arm mounting; 14-inch touchscreen with highest resolution of 1920 x 1200, brings ultimate clear waveform display.
