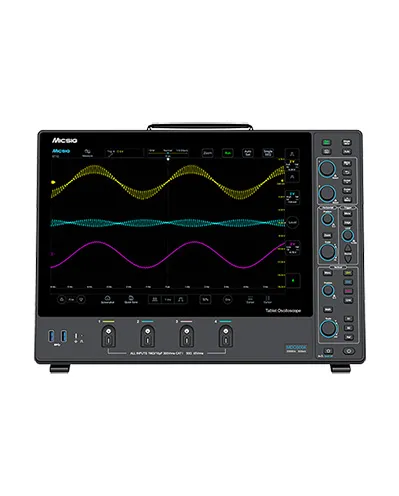

The MDOseries digital storage oscilloscope is a bench-top oscilloscope that features 4 analog channels, max. 500MHz bandwidth, 3GSa/s real-time sampling rate, and 360Mpts memory depth. With 3.58cm ultra-thin design, it supports wall / arm mounting; 14-inch touchscreen with highest resolution of 1920 x 1200, brings ultimate clear waveform display.
Vertical system Bandwidth filter : 20MHz, HighPass/LowPass Coupling : DC,AC,GND Input impedance and accuracy : 1MΩ±1%||50Ω±1% Vertical resolution : 8bits Vertical divisons : 10div Vertical scale factor : 1mV/div~10V/div(1MΩ);1mV/div~1V/div(50Ω) DC Gain accuracy : 5mV/div~10V/div:≤±2.0%;≤2mV/div:≤±3.0% Vertical offset range(1MΩ/50Ω): ±2.5V(@probeX1,<500mV/div),±125V(@probeX1,≥500mV/div) Noise floor : ≤90μVrms(1mV/div,1MΩ) Max. input voltage : CATI300Vrms 400Vpk(1MΩ),5Vrms(50Ω) Channel isolation : >40dB(≤100MHz),>35dB(>100MHz) Vertical expansion datum : Screencenter,channelzeropoint Probe Attenuation Ratio : 1mX~10kX,1-2-5sequence,support customization Horizontal system Horizontal scale : 1ns/div~1ks/div Roll moderange : 200ms/div~1ks/div Time base accuracy : 20ppm Horizontal divisions : 12div Time base delay time range : -12div~12ks,resolution:1pixel Trigger system Trigger mode : Auto,Normal,Single Trigger level range(analog) : ±5divfromscreencenter,analogchannel Hold off range : 200ns~10s Trigger coupling and frequency(analog) : DC,AC(110Hz), lowfrequency(58kHz),highfrequency(58kHz),noise(18MHz) Trigger Types : Edge,PulseWidth,Logic,NEdge,RuntPulse(Runt),Slope,TimeOut,Video,Serial Bus decoding : RS-232/422/485/UART,CAN,CANFD,LIN,SPI, I2C,ARINC429,1553B Bandwith : 250MHz Rise time : ≤1.4ns Analog channels : 4 Sampling rate : 3GSa/s Memory depth : 360Mpts Waveform capture rate : 230,000wfms/s Vertical resolution : 8 bit Interface : USB 3.0 Host、USB Type-C、LAN、HDMI、Trigger out Noise : <90μVrms Bus decoding(std.) : RS-232/422/485/UART,CAN,CANFD,LIN,SPI, I²C, ARINC-429, MIL-STD-1553B Interfaces : USB 3.0/2.0 Host、USB Type-C、LAN、SFP+、HDMI、Trigger in/out、10MHz in/out Display : 14''TFTLCDtouchscreen,1920*1200resolution Trigger types : Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video, Serial Netweight : 4 kg
