12 Bit High Resolution Oscilloscope – Micsig MHO68-1000

Category :
Oscilloscope

Price :

Rp.713.000.000

Chat Us

DESCRIPTION
SPECIFICATION

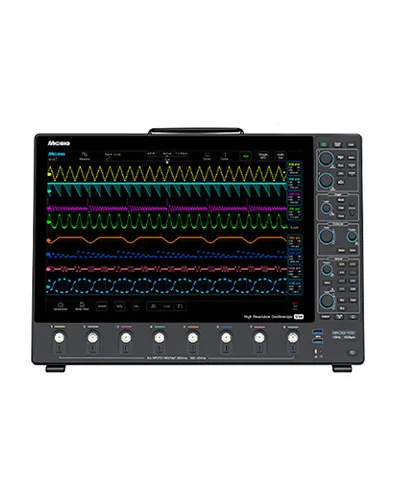

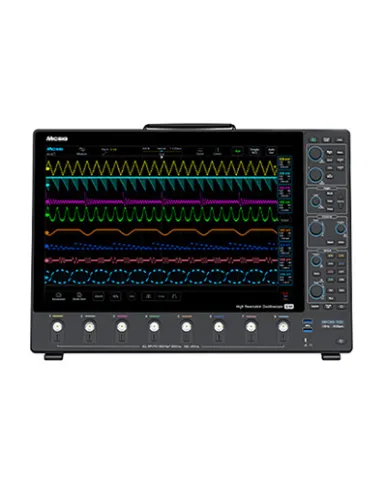

The MHO high-resolution oscilloscope 6 series features a 1GHz bandwidth, 6GSa/s sampling rate, 8 analog channels, a storage depth of 1800 million points (Mpts), and a 12-bit vertical resolution. Its high bandwidth and 8-channel capability are suitable for faster circuit analysis and more synchronized signal testing. Its ultra-thin design of 3.76 cm can save a lot of your precious desk space; a 16-inch touch screen with a resolution of 1920*1200 provides you with a super clear waveform display for a more comfortable visual experience.

Vertical system
Bandwidth filter : 20MHz、200MHz、High Pass / Low Pass
Coupling : DC, AC, GND
Input impedance and accuracy : 1MΩ±1%，14pF±2pf || 50Ω ±1%
Vertical resolution : 12 Bit
Vertical divisons : 10div
Vertical scale factor : 1mV/div~10V/div（1MΩ） 1mV/div~1V/div（50Ω）
Max. input voltage : CAT I 300Vrms 400Vpk（1MΩ），5Vrms（50Ω）
Channel isolation : ＞40dB（≤100MHz), ＞35dB（＞100MHz）
Vertical expansion reference : Screen center, channel zero point
Probe Attenuation Ratio : 1mX~10kX, 1-2-5 sequence, support customization
Horizontal system
Horizontal scale : 200ps/div~1ks/div
Roll mode range : 100ms/div~1ks/div
Time base accuracy : 2.5ppm
Horizontal divisions : 12div
Time base delay time range: -12 div ~ 12ks, resolution: 1 pixel
Sampling System
Real-time sampling rate(Max.) : 6G Sa/s (single channel); 3G Sa/s (half channel);
Memory depth (Max.) : 1.8Gpts (single channel); 900Mpts (half channel); 450Mpts (Full channel)
Peak sampling interval : single channel: 160ps，half channel: 320ps，Full channel: 666ps
Average times : 2,4,8,16,32,64,128,256
Envelope times : 2,4,8,16,32,64,128,256,∞
Auto measurements :
Period, frequency, rise time, fall time, delay, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width, burst pulse width, positive overshoot, negative overshoot, phase, peak-to-peak, Amplitude, High, Low, Maximum, Minimum, RMS, C RMS, Average, C Average, AC RMS, Positive Slope, Negative Slope
*C represents the first period, indicating a certain value in the first period of the waveform
Hardware frequency counter : Support each analog channel, 6bit, 2Hz~max. bandwidth, pk-pk > 0.8div
Cursor : Horizontal, Vertical, Cross
Cursor resolution : 1 pixel
Bandwith(-3dB)@50Ω : 1GHz
Bandwith(-3dB)@1MΩ : 500MHz
Rise time @ 50 Ω : ≤ 0.4ns
Analog channels : 8
Sampling rate : 6GSa/s
Memory depth : 1.8Gpts
Waveform capture rate : 280,000 wfms/s
Interface : USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out, 10 MHz clock signal In/Out
Vertical resolution : 12 bit
Input impedance : 1MΩ±1% 14pF±2pf || 50Ω ±1%
Display : 16'' TFT LCD touch screen, 1920*1200 resolution
Dimension : 443.6*307.2*37.6mm
Net weight : 5.5kg
