12 Bit High Resolution Oscilloscope – Micsig MO34-500Pro

Category :
Oscilloscope

Price :

Rp.231.000.000

Chat Us

DESCRIPTION
SPECIFICATION

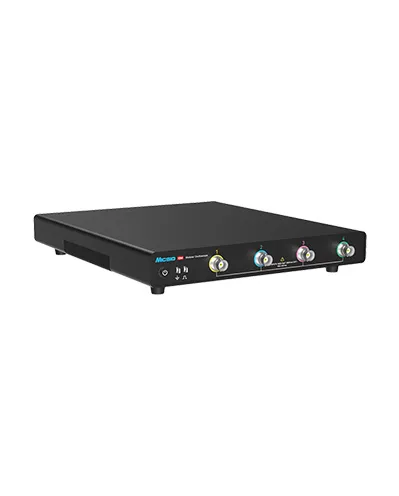

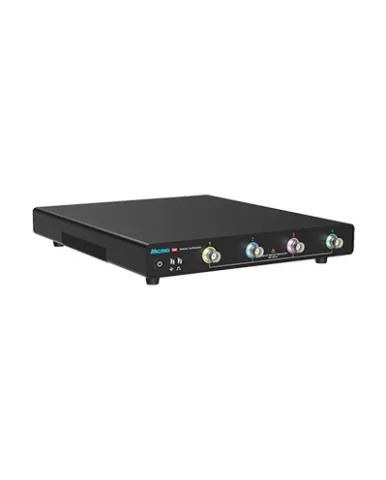

Micsig MO3 series high-resolution modular oscilloscope is only 3 cm high, making it the ultimate space-savingsolution for desktops and test racks. The MO3 series features a 12-bit ADC, offering 500 MHz analog bandwidth, 3 GSa/s real-time sampling rate, 360 Mpts, and 4 analog channels; Supports HDMI direct connection for seamless access to large screens, with no software installation required. Users can control the oscilloscope using a mouse for simple and intuitive operation. Supports oscilloscope cascading with up to 16 channels, effectively reducing the cost of using multi-channel oscilloscopes. Supports PC-based oscilloscope remote control, SCPI protocol, secondary development, and high-speed data streaming, making it the top choice for system integration.

Vertical system
Bandwidth filter : 20MHz、High Pass / Low Pass
Coupling : DC,AC,GND
Input impedance and accuracy : 1MΩ±1% || 50Ω±1%
Vertical resolution : 12 bits
Vertical divisons : 10div
Vertical scale factor : 1mV/div~10V/div（1MΩ） 1mV/div~1V/div（50Ω）
DC gain accuracy : ≤ ±1.0%
Vertical offset range(1MΩ/50Ω) : ±2.5V（@probe X1 ，＜ 500mV/div），±125V（@probe X1，≥ 500mV/div）
Noise : ≤85μVrms（1mV/div，1MΩ）
Max. input voltage : CAT I 300Vrms 400Vpk（1MΩ），5Vrms（50Ω）
Channel isolation : ＞40dB（≤100MHz），＞35dB（＞100MHz）
Vertical expansion reference : Screen center, channel zero point
Probe Attenuation Ratio : 1mX~10kX, 1-2-5 sequence, support customization
Horizontal system
Horizontal scale : 1ns/div~1ks/div
Roll mode range : 100ms/div~1ks/div
Time base accuracy : 20ppm
Horizontal divisions : 12div
Time base delay time range : -12 div ~ 12ks, resolution: 1 pixel
Trigger System
Trigger mode : Auto, Normal, Single
Trigger level range (analog) : ±5div from screen center, analog channel
Hold off range : 200ns~10s
Trigger coupling and frequency (analog) : DC, AC(110Hz), low frequency (58kHz), high frequency (58kHz), noise (18MHz)
Trigger Types : Edge, Pulse Width, Logic, N Edge, Runt Pulse (Runt), Slope, Time Out, Video, Serial
Bus decoding : RS-232/422/485/UART、CAN、CAN FD、LIN、SPI、I2C、ARINC429、1553B
Sampling System
Real-time sampling rate(Max.) : 3GSa/s （Either one of CH1 & CH2 is open, and either one of CH3 & CH4 is open)；
1.5GSa/s （Both CH1 and 2CH, or both CH3 and CH4 are open)
Memory depth (Max.) : 360Mpts/36M/3.6M/360K/36K/3.6K/Auto (Either one of CH1 & CH2 is open, and either one of CH3 & CH4); 180Mpts/18M/1.8M/180K/18K/1.8K/Auto (Both CH1 and 2CH, or both CH3 and CH4 are open)
Peak sampling interval : single channel: 333ps，Full channel: 666ps
Average times : 2,4,8,16,32,64,128,256
Envelope times : 2,4,8,16,32,64,128,256,∞
Measurements
Auto measurements : Period, frequency, rise time, fall time, delay, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width, burst pulse width, positive overshoot, negative overshoot, phase, peak-to-peak, Amplitude, High, Low, Maximum, Minimum, RMS, C RMS, Average, C Average, AC RMS, Positive Slope, Negative Slope
*C represents the first period, indicating a certain value in the first period of the waveform
Hardware frequency counter : Support each analog channel, 6bit, 2Hz~max. bandwidth, pk-pk > 0.8div
Cursor : Horizontal, Vertical, Cross
Cursor resolution : 1 pixel
Bandwith : 500MHz
Rise time : ≤0.7ns
Analog channels : 4
Sampling rate : 3GSa/s
Memory depth : 360Mpts
Waveform capture rate : 230,000wfms/s
Configuration : Software used for system integration
Interface : USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out, 10 MHz clock signal In/Out
Vertical resolution : 12 bit
Input Impedance : 50Ω / 1MΩ
Noise : ＜85μVrms
Bus decoding(std.) : RS-232/422/485/UART、CAN、CAN FD、LIN、SPI、I²C、ARINC429、1553B
Interfaces : USB 3.0/2.0 Host、USB Type-C、LAN、SFP+、HDMI、Trigger in/out、10MHz in/out
Trigger : Edge, Pulse width, Logic, Nth-edge, Runt, Slope, Timeout, Video, Serial bus
Dimension : 224.5*30*264.3mm
Netweight : 4 kg
