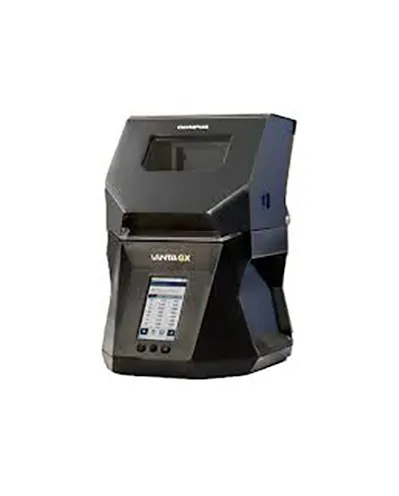

Benchtop X-ray fluorescence (XRF) analyzers are compact and stylish for the consumer showroom environment. Our benchtop XRF analyzers include precious metal analyzers for proving the purity and composition of gold, silver, jewelry, coins, watches, and other valuable objects. Benchtop XRF analyzers are used by jewelry stores and pawn shops to accurately price the valuables they buy and sell. Using a simple and safe testing process, these analyzers deliver precious metal content, karatage, and fineness in seconds without damaging valuables. Verify authentic jewelry made of gold, silver, palladium, platinum, and other precious metals on the spot.
Excitation Source : 2-watt X-ray tube: 35 kV, 50 μA maximum Tungsten (W) anode Detector : Silicon PIN diode Silicon drift detector Thermo-electrically cooled, high resolution Power : 100–240 VAC, 50–60 Hz, 70 watts at 18 V and 3.9 A Display : Full color touch-screen display: 800 × 480 (WVGA) 16-bit transflective LCD with capacitive touch screen supporting gesture control Operating Environment : Temperature : -10 °C to 40 °C (14 °F to 122 °F) Humidity : 10% to 90% relative humidity, noncondensing Operating system : Linux Application software : Evident-proprietary data acquisition and processing package Camera : Full-color VGA camera Warranty : Three-year standard warranty Spot size : 6 mm nominal diameter Connectivity : 1 mini USB and 2 full size USB Sample chamber dimensions (H × W × D) : 9.39 cm × 17.67 cm × 17.34 cm (3.70 in. × 6.96 in. × 6.83 in.) Weight : 10 kg (22 lb) Overall Dimensions (H × W × D) : Closed : 35.73 cm × 23.93 cm × 32.41 cm (14.07 in. × 9.42 in. × 12.76 in.) Open : 38.78 cm × 23.93 cm × 39.08 cm (15.27 in. × 9.42 in. × 15.39 in.)
Benchtop X-ray fluorescence (XRF) analyzers are compact and stylish for the consumer showroom environment. Our benchtop XRF analyzers include precious metal analyzers for proving the purity and composition of gold, silver, jewelry, coins, watches, and other valuable objects. Benchtop XRF analyzers are used by jewelry stores and pawn shops to accurately price the valuables they buy and sell. Using a simple and safe testing process, these analyzers deliver precious metal content, karatage, and fineness in seconds without damaging valuables. Verify authentic jewelry made of gold, silver, palladium, platinum, and other precious metals on the spot.
Evident offers a range of compact, handheld, and benchtop X-ray fluorescence (XRF) analyzers to bring the analysis to where you need it. Our analyzers provide fast, accurate, and nondestructive elemental analysis. Portable XRF analysis can be used on location in various industries, bringing laboratory-quality results to the field. The speed of XRF also makes it perfect for automated or continuous testing on the production line. We offer analyzers purpose-built for in-line inspection. All our analyzers offer speed, power, ease of use, and accuracy for a wide range of material characterization applications.
Evident offers a range of compact, handheld, and benchtop X-ray fluorescence (XRF) analyzers to bring the analysis to where you need it. Our analyzers provide fast, accurate, and nondestructive elemental analysis. Portable XRF analysis can be used on location in various industries, bringing laboratory-quality results to the field. The speed of XRF also makes it perfect for automated or continuous testing on the production line. We offer analyzers purpose-built for in-line inspection. All our analyzers offer speed, power, ease of use, and accuracy for a wide range of material characterization applications.
