Excitation source :
X-ray tube with an application-optimized anode material.
Max: 4 W with 8–50 kV rhodium anode
Core: 4 W with 8–50 kV silver, 8–40 kV rhodium, or 8–40 kV tungsten anode

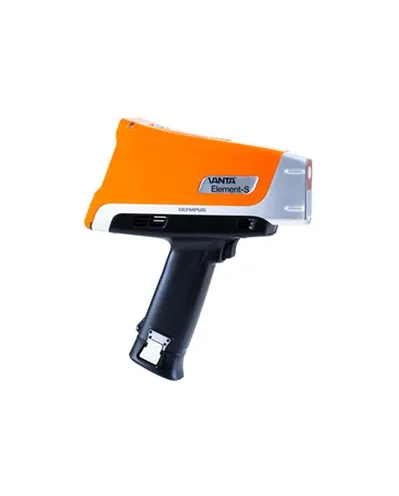

Element-S : 4 W with 8–50 kV silver anode
Element : 2 W with 8–35 kV tungsten anode
Primary beam filtration :
Max and Core: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot
Element-S : 4-position filter wheel
Element : Fixed aluminum filter
Detector : Silicon drift detector with a high-sensitivity graphene window
Power : Removable 14.4 V Li-ion battery (with hot-swap capability on Max only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display : 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating environment :
Temperature range for Max and Core: -10 °C to 50 °C (14 °F to 122 °F),
and continuous full duty cycle with optional fan
Temperature range for Element: -10 °C to 45 °C (14 °F to 113 °F)
Humidity: 10% to 90% relative humidity non-condensing
Drop test : Military Standard 810-G 4-foot (1.2 m) drop test
IP rating and detector shutter :
Max and Element: IP54* dust protected and protected against water splashing from all directions
Core: IP55* dust protected and protected from low-pressure water jets from all directions
Max and core: Solid detector shutter to help prevent detector damage
Pressure correction : Max and Core: Built-in barometer for automatic altitude and air density correction
GPS : Embedded GPS / GLONASS receiver
Operating system : Linux. Cloud enabled with user fleet manager capability
Data storage : microSD slot with removable 1 GB industrial SD card included
USB :
(2) USB 2.0 type A host ports for accessories such as Wi-Fi, Bluetooth, and USB flash drives
(1) USB 2.0 type mini-B port for connection to computer
Wi-Fi® : Supports 802.11 b/g/n (2.4 GHz) cable optional USB adapter
Bluetooth® : Supports Bluetooth with an optional USB adapter
Aiming camera : Max and Core: Optional full VGA CMOS camera
Panoramic camera : 13-megapixel CMOS camera with autofocus lens (optional)
Warranty : Three-year warranty
Weight :
Element-S : 1.84 kg (4 lb) with battery, 1.61 kg (3.55 lb) without battery
Element : 1.71 kg (3.77 lb) with battery, 1.48 kg (3.26 lb) without battery
Dimensions (W × H × D) : 10.4 × 29.6 × 24.1 cm (4.1 × 11.6 × 9.5 in.)
